Technical Specifications
Parameters and characteristics for this part
| Specification | 1711404 |
|---|---|
| Color | Green |
| Contact Mating Finish | Silver |
| Current - IEC | 76 A |
| Current - UL | 66 A |
| Features | Mating Flange |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 0.988 in |
| Insulation Height | 25.1 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Pitch [x] | 10.16 mm |
| Pitch [x] | 0.4 in |
| Positions Per Level | 5 |
| Termination Style | Screwless - Spring Cage, Tension Clamp |
| Type | Plug, Female Sockets |
| Voltage - IEC | 1 kV |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 4 AWG |
| Wire Gauge or Range - mm˛ [Max] | 16 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.75 mm˛ |
| Wire Strip Length | 18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SPC Series

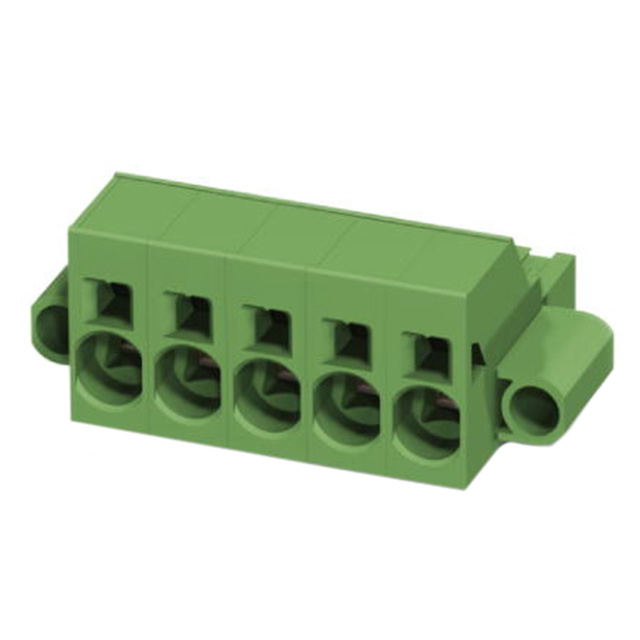

Pluggable Terminal Blocks 5 Pos 10.16mm pitch Plug 18-4 AWG Spring
