NJM12903RB1-TE1

Active

Nisshinbo Micro Devices Inc

IC COMPARATOR 2 GEN PUR 8TVSP

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC COMPARATOR 2 GEN PUR 8TVSP

Technical Specifications

Parameters and characteristics for this part

Specification	NJM12903RB1-TE1

Current - Input Bias (Max) [Max]	0.2 µA
Current - Quiescent (Max) [Max]	1 mA
Mounting Type	Surface Mount
Number of Elements	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	Open-Collector

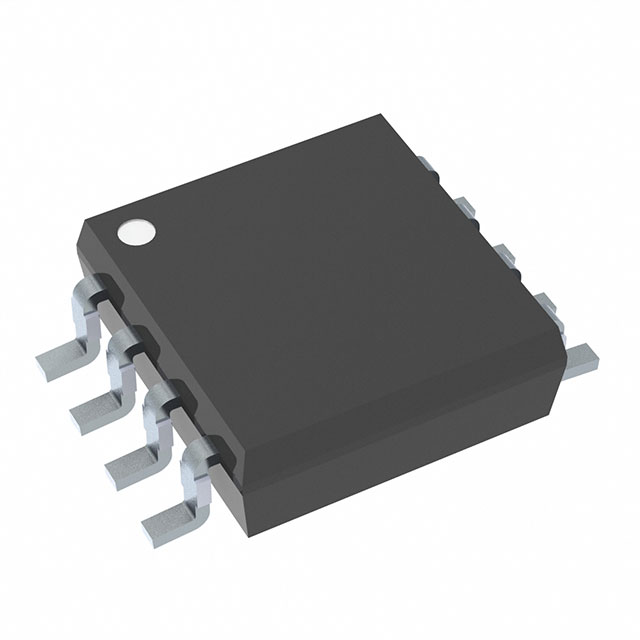

Package / Case	8-VSSOP, 8-MSOP
Supplier Device Package	8-TVSP
Type	General Purpose
Voltage - Input Offset (Max) [Max]	4 mV
Voltage - Supply, Single/Dual (±) [Max]	14 V
Voltage - Supply, Single/Dual (±) [Min]	2 V

Part	Current - Quiescent (Max) [Max]	Voltage - Input Offset (Max) [Max]	Current - Input Bias (Max) [Max]	Mounting Type	Voltage - Supply, Single/Dual (±) [Max]	Voltage - Supply, Single/Dual (±) [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Package / Case	Type	Number of Elements
Nisshinbo Micro Devices Inc NJM12903RB1-TE1	1 mA	4 mV	0.2 µA	Surface Mount	14 V	2 V	8-TVSP	85 °C	-40 °C	Open-Collector	8-MSOP 8-VSSOP	General Purpose	2
Nisshinbo Micro Devices Inc NJM12903V-TE1	1 mA	4 mV	0.2 µA	Surface Mount	14 V	2 V	8-SSOP	85 °C	-40 °C	Open-Collector	8-LSSOP (0.173" 4.40mm Width)	General Purpose	2
Nisshinbo Micro Devices Inc NJM12903R-TE1	1 mA	4 mV	0.2 µA	Surface Mount	14 V	2 V	8-VSP	85 °C	-40 °C	Open-Collector		General Purpose	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Comparator General Purpose Open-Collector 8-TVSP
