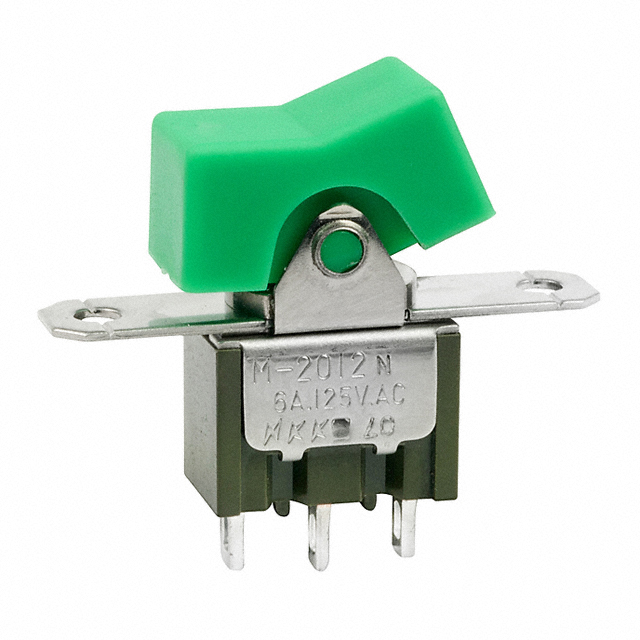

M2012TNW01-DF
ObsoleteNKK Switches
SWITCH ROCKER SPDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M2012TNW01-DF
ObsoleteNKK Switches
SWITCH ROCKER SPDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | M2012TNW01-DF |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | CSA, UL |
| Circuit | SPDT |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 25000 Steps |
| Features | Epoxy Sealed Terminals |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 17.8 mm |
| Panel Cutout Dimensions [y] | 10.1 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
M2012TN Series
| Part | Actuator Type | Actuator Marking | Circuit | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Features | Approval Agency | Operating Temperature [Min] | Operating Temperature [Max] | Electrical Life | Mounting Type | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | Concave (Standard V) | No Marking | SPDT | Solder Lug | 17.8 mm | 10.1 mm | Black | On-On | 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | |
NKK Switches | Concave (Standard V) | No Marking | SPDT | Solder Lug | 17.8 mm | 10.1 mm | Green | On-On | 4 A 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | 30 V |
NKK Switches | Paddle | No Marking | SPDT | Solder Lug | 17.8 mm | 10.1 mm | Black | On-On | 4 A 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | 30 V |
NKK Switches | Concave (Standard V) | No Marking | SPDT | PC Pin | 17.8 mm | 10.1 mm | Black | On-On | 4 A 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | 30 V |
NKK Switches | Concave (Standard V) | No Marking | SPDT | Solder Lug | 17.8 mm | 10.1 mm | Black | On-On | 4 A 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | 30 V |
NKK Switches | Concave (Standard V) | No Marking | SPDT | Solder Lug | 12.7 mm | 12.4 mm | Black | On-On | 4 A 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | 30 V |
NKK Switches | Paddle | No Marking | SPDT | PC Pin | 17.8 mm | 10.1 mm | Black | On-On | 4 A 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | 30 V |
NKK Switches | Actuator Arm Cap Required | Varies by Cap | SPDT | Solder Lug | On-On | 0.4 VA | 28 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 50000 Cycles | Flange Panel Mount | 28 V | |||
NKK Switches | Actuator Arm Cap Required | Varies by Cap | SPDT | Solder Lug | On-On | 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | ||||
NKK Switches | Concave (Standard V) | No Marking | SPDT | PC Pin | 12.7 mm | 12.4 mm | White | On-On | 4 A 6 A | 125 V | Epoxy Sealed Terminals | CSA UL | -30 ░C | 85 °C | 25000 Steps | Flange Panel Mount | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
M2012TN Series
Rocker Switch SPDT 6A (AC), 4A (DC) 125 V Panel Mount, Flange
