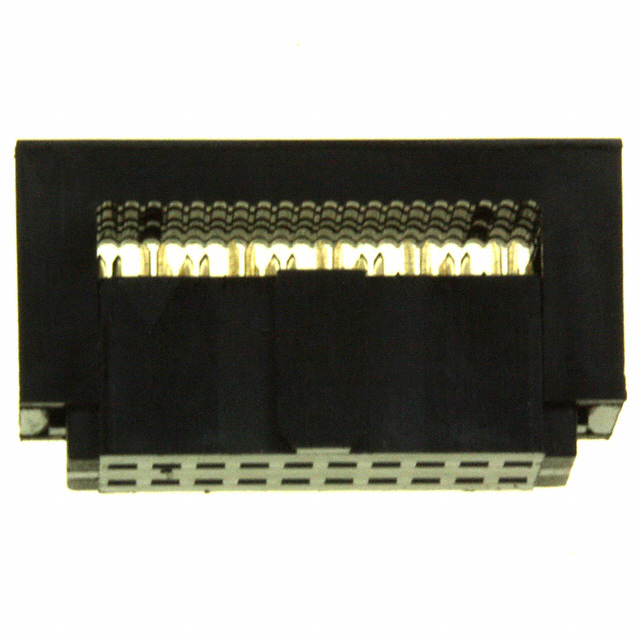

SFH41-PPPB-D10-ID-BK

Active

Sullins Connector Solutions

CONN HEADER 20POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

SFH41-PPPB-D10-ID-BK

Active

Sullins Connector Solutions

CONN HEADER 20POS IDC GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFH41-PPPB-D10-ID-BK

Cable Termination	IDC
Color	Black
Connector Type	Header
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line)
Number of Positions	20
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

SFH41 Series

Part	Features	Contact Finish Thickness	Connector Type	Pitch [x]	Pitch [x]	Contact Finish	Cable Termination	Contact Type	Mounting Type	Number of Rows	Row Spacing [x]	Row Spacing	Number of Positions	Color	Wire Type
Sullins Connector Solutions SFH41-PPPB-D10-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	20	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D50-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	100	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPPB-D05-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	10	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D10-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	20	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPPB-D15-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	30	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPPB-D50-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	100	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D40-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	80	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPPB-D25-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	50	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPVB-D25-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	50	Black	Ribbon Cable
Sullins Connector Solutions SFH41-PPPB-D20-ID-BK	Feed Through Polarizing Key	Flash	Header	0.05 in	1.27 mm	Gold	IDC	Female Socket	Free Hanging (In-Line)	2	0.1 in	2.54 mm	40	Black	Ribbon Cable

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.04
		10	$ 2.76
		80	$ 2.44
		440	$ 2.07
		1000	$ 1.77
		5000	$ 1.74

Description

General part information

SFH41 Series

20 Position Rectangular Header Connector IDC Gold

Documents

Technical documentation and resources

No documents available
