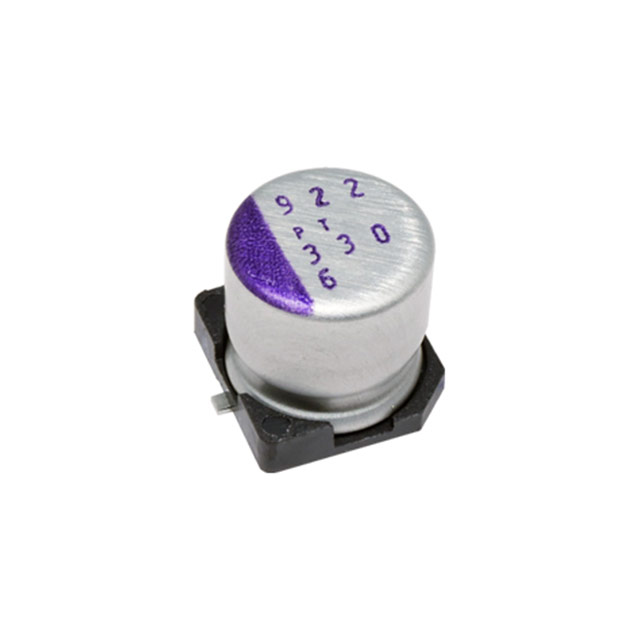

16SVPT100M

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 100UF 20% 16V SMD

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

CAP ALUM POLY 100UF 20% 16V SMD

Technical Specifications

Parameters and characteristics for this part

Specification	16SVPT100M

Applications	General Purpose
Capacitance	100 µF
ESR (Equivalent Series Resistance)	24 mOhms
Height - Seated (Max) [Max] [z]	0.256 in
Height - Seated (Max) [Max] [z]	6.5 mm
Lifetime @ Temp.	20000 Hrs, 105 °C
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can - SMD
Ripple Current @ High Frequency	2.49 A
Ripple Current @ Low Frequency	124.5 mA
Size / Dimension [diameter]	0.248 in
Size / Dimension [diameter]	6.3 mm
Surface Mount Land Size [x]	6.6 mm
Surface Mount Land Size [x]	0.26 in
Surface Mount Land Size [y]	0.26 in
Surface Mount Land Size [y]	6.6 mm
Tolerance	20 %
Type	Polymer
Voltage - Rated	16 V

Part	Lifetime @ Temp.	Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Ripple Current @ High Frequency	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Mounting Type	Ripple Current @ Low Frequency	ESR (Equivalent Series Resistance)	Tolerance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Panasonic Industrial Automation Sales 16SVPT100M	105 °C 20000 Hrs	Polymer	General Purpose	105 ░C	-55 °C	0.26 in	6.6 mm	6.6 mm	0.26 in	2.49 A	100 µF	0.248 in	6.3 mm	16 V	Surface Mount	124.5 mA	24 mOhms	20 %	Radial Can - SMD	0.256 in	6.5 mm
Panasonic Industrial Automation Sales 16SVPT1000M	105 °C 20000 Hrs	Polymer	General Purpose	105 ░C	-55 °C	0.406 "	10.3 mm	10.3 mm	0.406 in	5.4 A	1000 µF	0.394 in	10 mm	16 V	Surface Mount	270 mA	12 mOhms	20 %	Radial Can - SMD	0.5 in	12.7 mm
Panasonic Industrial Automation Sales 16SVPT270M	105 °C 20000 Hrs	Polymer	General Purpose	105 ░C	-55 °C	0.327 in	8.3 mm	8.3 mm	0.327 "	3.3 A	270 µF	0.315 "	8 mm	16 V	Surface Mount	165 mA	22 mOhms	20 %	Radial Can - SMD			7 mm	0.276 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

100 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 24mOhm 20000 Hrs @ 105°C
