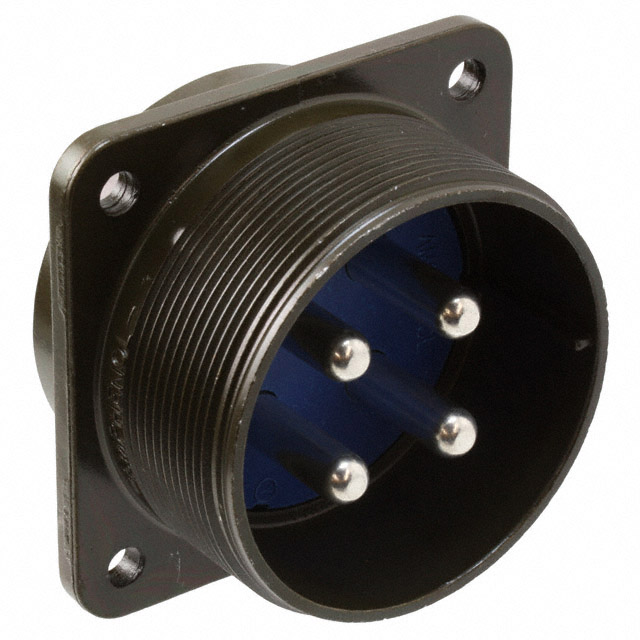

97-3102A-32-17P

Active

Amphenol Industrial Operations

CONN RCPT MALE 4P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 4P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102A-32-17P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	32-17
Shielding	Unshielded

Part	Shell Size - Insert	Shell Material	Applications	Contact Material	Shielding	Connector Type	Primary Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Mounting Feature	Insert Material	Number of Positions	Shell Finish	Color	Shell Size - Insert [Min]	Shell Size - Insert [Max]
Amphenol Industrial Operations 97-3102A-32-17P	32-17	Aluminum Alloy	Automotive Industrial	Copper Alloy	Unshielded	Male Pins Receptacle	Metal	N	-55 °C	125 °C	Silver	Flange	Diallyl Phthalate (DAP)	4	Olive Drab Chromate over Cadmium	Olive Drab
Amphenol Industrial Operations 97-3102A32-414P		Aluminum Alloy	Automotive Industrial	Copper Alloy	Unshielded	Male Pins Receptacle	Metal	N	-55 °C	125 °C	Silver	Flange	Diallyl Phthalate (DAP)	52	Olive Drab Chromate over Cadmium	Olive Drab	32	414

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup

Technical documentation and resources
