H3AXG-10105-B8
ActiveHirose Electric USA, Inc.
JUMPER-H1507TR/A3048B/X 5"
Deep-Dive with AI
Search across all available documentation for this part.
H3AXG-10105-B8
ActiveHirose Electric USA, Inc.
JUMPER-H1507TR/A3048B/X 5"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H3AXG-10105-B8 |
|---|---|
| Color | Black |
| Contact End | Pin to Cable (Round) |
| Contact Finish | Gold |
| Length [x] | 5 in |
| Length [x] | 127 mm |
| Number of Conductors | 1 |
| Number of Rows | 1 |
| Wire Gauge | 28 AWG |
H3AXG Series
...
| Part | Contact End | Length | Length | Contact Finish | Number of Conductors | Wire Gauge | Number of Rows | Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Pin to Cable (Round) | 203.2 mm | 8 in | Gold | 1 | 28 AWG | 1 | Violet | ||
Hirose Electric USA, Inc. | Pin to Cable (Round) | Gold | 1 | 28 AWG | 1 | Black | 5 in | 127 mm | ||
Hirose Electric USA, Inc. | Pin to Cable (Round) | 152.4 mm | 6 in | Gold | 1 | 28 AWG | 1 | Yellow | ||
Hirose Electric USA, Inc. | Pin to Cable (Round) | 254 mm | Gold | 1 | 26 AWG | 1 | Green | 10 in | ||
Hirose Electric USA, Inc. | Pin to Cable (Round) | 152.4 mm | 6 in | Gold | 1 | 28 AWG | 1 | Blue | ||
Hirose Electric USA, Inc. | Pin to Cable (Round) | Gold | 1 | 28 AWG | 1 | 4 " | 101.6 mm | |||
Hirose Electric USA, Inc. | Pin to Cable (Round) | Gold | 1 | 24 AWG | 1 | Violet | 5 in | 127 mm | ||
Hirose Electric USA, Inc. | Pin to Cable (Round) | 203.2 mm | 8 in | Gold | 1 | 24 AWG | 1 | |||
Hirose Electric USA, Inc. | Pin to Cable (Round) | 152.4 mm | 6 in | Gold | 1 | 26 AWG | 1 | Violet | ||
Hirose Electric USA, Inc. | Pin to Cable (Round) | 203.2 mm | 8 in | Gold | 1 | 28 AWG | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 0.71 | |
| 30 | $ 0.62 | |||
| 50 | $ 0.59 | |||
| 100 | $ 0.54 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.42 | |||
| 2500 | $ 0.38 | |||
| 5000 | $ 0.36 | |||
Description
General part information
H3AXG Series

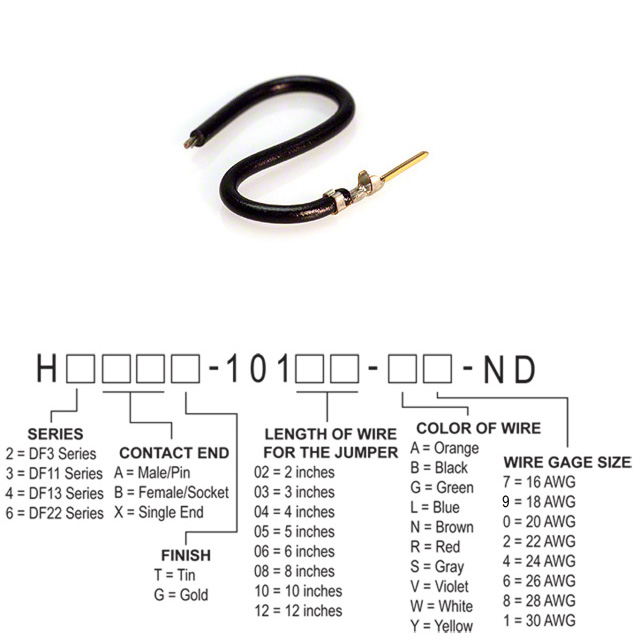

Black 28 AWG Jumper Lead Pin to Cable (Round) Gold 5.00" (127.00mm)
