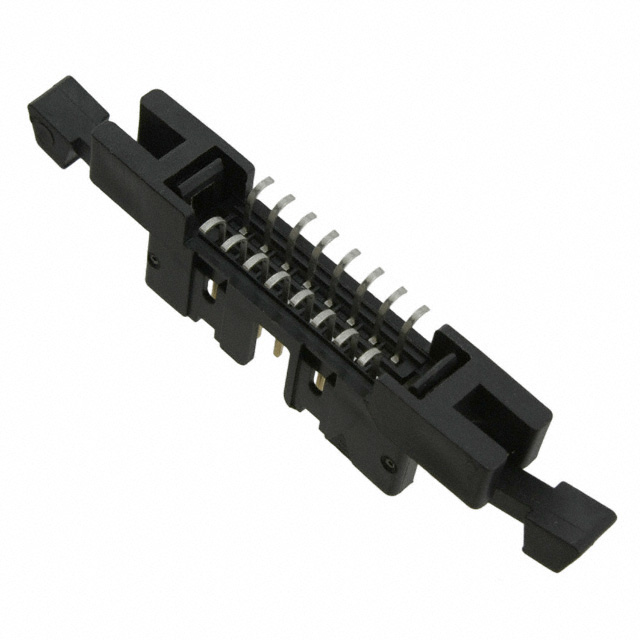

N4616-2300-RB

Obsolete

3M (TC)

CONN HEADER SMD 16POS 2.54MM

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN HEADER SMD 16POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Specification	N4616-2300-RB

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	300 µin
Contact Finish Thickness - Post	7.62 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.25 A
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Black
Insulation Height	0.525 in
Insulation Height	13.34 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Number of Positions Loaded	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Material	Fastening Type	Number of Rows	Contact Finish - Mating	Material Flammability Rating	Insulation Material	Shrouding	Number of Positions	Style	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Shape	Insulation Color	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height
3M (TC) N4616-2300-RB	All	Surface Mount	300 µin	7.62 µm	Solder	Copper Alloy	Latch Lock/Eject Hooks Long	2	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Shrouded - 4 Wall	16	Board to Cable/Wire	1.25 A	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	30 Áin	0.76 Ám	Male Pin	Square	Black	Header	105 ░C	-55 °C	0.525 in	13.34 mm
3M (TC) N4616-2000-RB	All	Surface Mount	300 µin	7.62 µm	Solder	Copper Alloy	Push-Pull	2	Gold	UL94 V-0	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Shrouded - 4 Wall	16	Board to Cable/Wire	1.25 A	0.1 in	2.54 mm	2.54 mm	0.1 in	Tin	30 Áin	0.76 Ám	Male Pin	Square	Black	Header	105 ░C	-55 °C	0.525 in	13.34 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount 16 position 0.100" (2.54mm)
