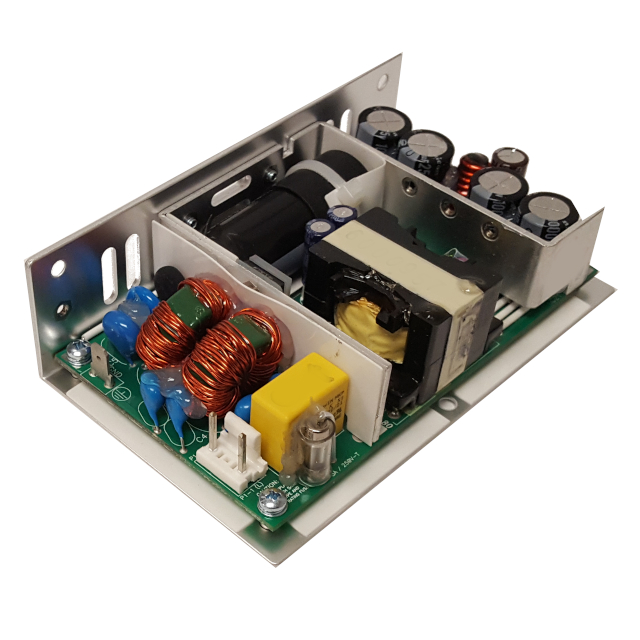

1011362CH

Active

Integrated Power Designs

GRN-80-1001 OVP CH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1011362CH

Active

Integrated Power Designs

GRN-80-1001 OVP CH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1011362CH

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	16 A
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	53 W
Size / Dimension [x]	114.3 mm
Size / Dimension [x]	4.5 in
Size / Dimension [y]	69.9 mm
Size / Dimension [y]	69.85 mm
Size / Dimension [z]	32.5 mm
Size / Dimension [z]	1.28 in
Standard Number	60601-1, 62368-1
Type	Chassis
Voltage - Output 1	3.3 V

GRN-80 Series

Part	Current - Output 1	Features	Voltage - Output 1	Efficiency	Applications	Mounting Type	Standard Number	Approval Agency	Type	Number of Outputs	Operating Temperature [Max]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 2	Current - Output 2	Voltage - Output 3	Current - Output 4
Integrated Power Designs 1011367CHCO	2.9 A	Adjustable Output Remote Sense Universal Input	28 V	87 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Enclosed	1	70 °C	80 W	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in
Integrated Power Designs 1011362CH	16 A	Adjustable Output Remote Sense Universal Input	3.3 V		ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Chassis	1	70 °C	53 W	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in
Integrated Power Designs 1011390CHCO	3 A	Adjustable Output Remote Sense Universal Input	15 V	88 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Enclosed	2	70 °C	80 W	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	-15 V	3 A
Integrated Power Designs 1011259CHCO	4 A	Adjustable Output Remote Sense Universal Input	12 V	88 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Enclosed	2	70 °C	80 W	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	-12 V	4 A
Integrated Power Designs 1011252CHCO	8 A	Adjustable Output Remote Sense Universal Input	5 V	88 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Enclosed	4	70 °C	80 W	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	-5 V	5 A	12 V	1.5 A
Integrated Power Designs 1011364CHCO	6.7 A	Adjustable Output Remote Sense Universal Input	12 V	87 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Enclosed	1	70 °C	80 W	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in
Integrated Power Designs 1011251CHCO	8 A	Adjustable Output Remote Sense Universal Input	3.3 V	88 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Enclosed	4	70 °C	87 W	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	5 V	5 A	12 V	1.5 A
Integrated Power Designs 1011253CH	8 A	Adjustable Output Remote Sense Universal Input	5 V	88 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Chassis	4	70 °C	80 W	32.5 mm	133.4 mm	82.6 mm	3.25 "	1.28 in	5.25 "	24 V	1 A	12 V	1.5 A
Integrated Power Designs 1011368CH	1.7 A	Adjustable Output Remote Sense Universal Input	48 V	87 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Chassis	1	70 °C	80 W	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in
Integrated Power Designs 1011363CH	16 A	Adjustable Output Remote Sense Universal Input	5 V	85 %	ITE (Commercial) Medical	Chassis Mount	60601-1 62368-1	CE cURus TUV UKCA	Chassis	1	70 °C	80 W	32.5 mm	114.3 mm	69.9 mm	69.85 mm	1.28 in	4.5 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 96.35
		25	$ 92.28
		100	$ 89.88

Description

General part information

GRN-80 Series

Chassis AC DC Converters 1 Output 3.3V 85 ~ 264 VAC Input
