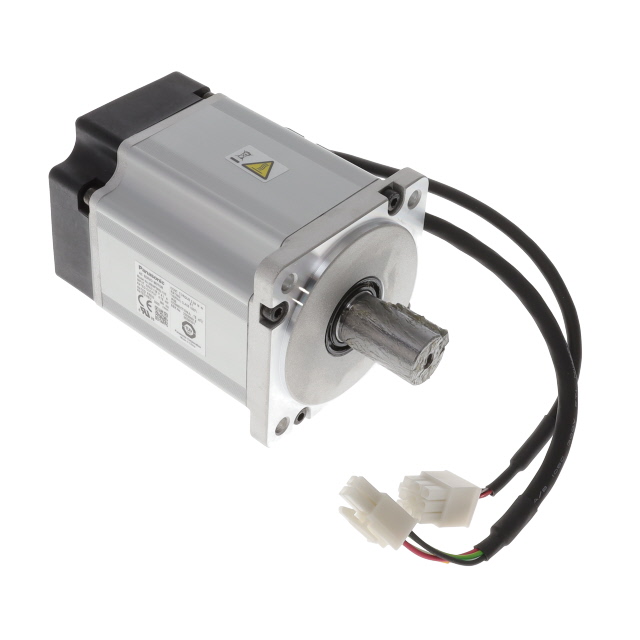

MSMF082L1U2

Active

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

SERVOMOTOR 3000 RPM 200V

Technical Specifications

Parameters and characteristics for this part

Specification	MSMF082L1U2

Approval Agency	CE, cURus, cULus
Diameter - Shaft	0.748 in
Diameter - Shaft	19 mm
Encoder Type	Absolute
Features	Key
Function	Servomotor
Length - Shaft and Bearing	35 mm
Length - Shaft and Bearing	1.378 in
Mounting Hole Spacing	90 mm
Mounting Hole Spacing	3.543 in
RPM	3000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [x]	3.15 in
Size / Dimension [y]	3.15 in
Size / Dimension [y]	80 mm
Termination Style	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	7160 mNm
Torque - Max Momentary (oz-in / mNm)	1014 oz-in
Torque - Rated (oz-in / mNm)	338.5 oz-in
Torque - Rated (oz-in / mNm)	2390 mNm
Type	AC Motor
Voltage - Rated	200 VAC
Weight	5.1 lbs
Weight	2.3 kg

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Function	Encoder Type	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Length - Shaft and Bearing	Length - Shaft and Bearing	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Voltage - Rated	Mounting Hole Spacing	Mounting Hole Spacing	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	RPM	Termination Style	Type	Features	Diameter - Shaft	Diameter - Shaft	Weight	Weight
Panasonic Industrial Automation Sales MSMF082L1A1	3.15 in	80 mm	3.15 in	80 mm	CE cULus cURus	Servomotor	Absolute	7160 mNm	1014 oz-in	35 mm	1.378 in	338.5 oz-in	2390 mNm	200 VAC	90 mm	3.543 in	19.6 mm	0.772 in	3000 RPM	Connector	AC Motor
Panasonic Industrial Automation Sales MSMF082L1U2	3.15 in	80 mm	3.15 in	80 mm	CE cULus cURus	Servomotor	Absolute	7160 mNm	1014 oz-in	35 mm	1.378 in	338.5 oz-in	2390 mNm	200 VAC	90 mm	3.543 in			3000 RPM	Cable with Connector	AC Motor	Key	0.748 in	19 mm	5.1 lbs	2.3 kg
Panasonic Industrial Automation Sales MSMF082L1C1	3.15 in	80 mm	3.15 in	80 mm	CE cULus cURus	Servomotor	Absolute	7160 mNm	1014 oz-in	35 mm	1.378 in	338.5 oz-in	2390 mNm	200 VAC	90 mm	3.543 in	19.6 mm	0.772 in	3000 RPM	Connector	AC Motor	Oil Seal
Panasonic Industrial Automation Sales MSMF082L1C2	3.15 in	80 mm	3.15 in	80 mm	CE cULus cURus	Servomotor	Absolute	7160 mNm	1014 oz-in	35 mm	1.378 in	338.5 oz-in	2390 mNm	200 VAC	90 mm	3.543 in	19.6 mm	0.772 in	3000 RPM	Cable with Connector	AC Motor	Oil Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC Motor Servomotor 3000 RPM 750W Absolute 200VAC
