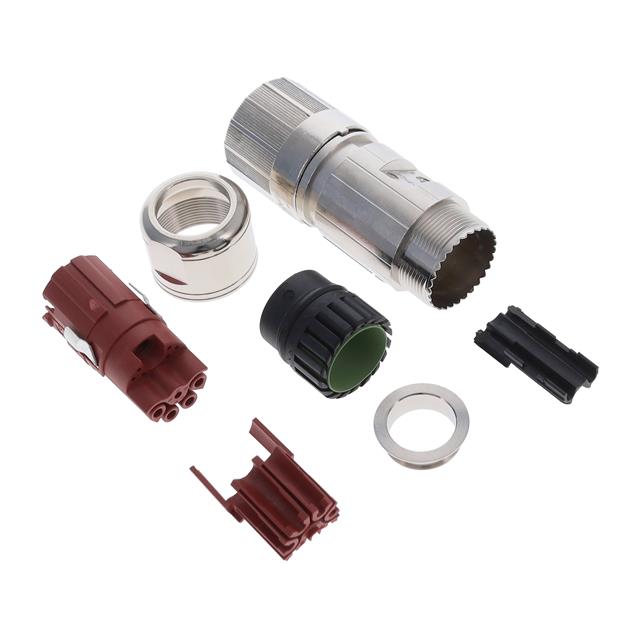

HSA002N00420100000

Active

TE Intercontec

CONN PLG HSG FMALE 11POS INLINE

Search across all available documentation for this part.

Active

TE Intercontec

CONN PLG HSG FMALE 11POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	HSA002N00420100000

Connector Type	Plug Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Includes	1 Backshell, 1 Connector, 1 Cable Clamp
Ingress Protection	IP66/IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	11 (6 + 4 Power + PE)
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shielding	Shielded
Type	For Female Sockets

Part	Fastening Type	Connector Type	Note	Shell Material	Contact Shape	Features	Number of Positions	Insert Material	Shell Finish	Material Flammability Rating	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shielding	Mounting Type	Type	Housing Color	Ingress Protection
TE Intercontec HSA002N00420100000	Push-Twist	Plug Housing	Contacts Not Included	Zinc Die Cast	Circular	Backshell Cable Clamp Coupling Nut	11 (6 + 4 Power + PE)	Polyamide (PA66) Nylon 6/6	Nickel	UL94 V-0	1 Backshell 1 Cable Clamp 1 Connector	-20 C	130 °C	Keyed	Shielded	Free Hanging (In-Line)	For Female Sockets	Silver	IP66/IP67
TE Intercontec HSA008N00550100000	Push-Twist	Plug Housing	Contacts Not Included	Zinc Die Cast	Circular	Backshell Cable Clamp Coupling Nut	11 (6 + 4 Power + PE)	Polyamide (PA66) Nylon 6/6	Nickel	UL94 V-0	1 Backshell 1 Cable Clamp 1 Connector	-20 C	130 °C	Keyed	Shielded	Free Hanging (In-Line)	For Female Sockets	Silver	IP66/IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11 (6 + 4 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
