ESDGPT-2

Active

Bertech

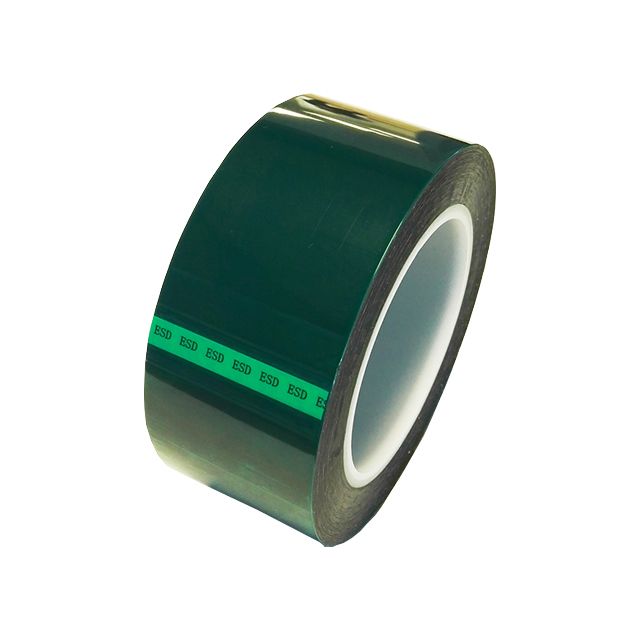

TAPE MASKING GREEN 2"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

ESDGPT-2

Active

Bertech

TAPE MASKING GREEN 2"X72YDS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESDGPT-2

Adhesive	Silicone
Backing, Carrier	Polyester Film
Color	Green
Length	66 m
Length	216 ft
Length	72 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Masking
Temperature Range [Max]	356 °F
Temperature Range [Min]	-40 °F
Thickness	2.5 mils
Thickness	0.064 mm
Thickness	0.0025 "
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Masking
Width [y]	2 "
Width [y]	50.8 mm

ESDGPT Series

Part	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Temperature Range [Max]	Temperature Range [Min]	Tape Type	Width [y]	Width [y]	Color	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life Start	Adhesive	Length	Length	Length	Shelf Life	Backing, Carrier	Width	Width	Width	Width	Width [x]	Width [x]
Bertech ESDGPT-2	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking	2 "	50.8 mm	Green	Masking	1 mils	0.025 mm	0.001 "	Date of Manufacture	Silicone	66 m	216 ft	72 yd	18 Months	Polyester Film
Bertech ESDGPT-4 1/2	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film	4.5 "	114.3 mm
Bertech ESDGPT-7/8	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film	0.88 in	22.35 mm	0.875 in
Bertech ESDGPT-1 3/8	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film	1.38 "	34.93 mm
Bertech ESDGPT-1 1/2	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film	1.5 "	38.1 mm		1 1/2
Bertech ESDGPT-4	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film					4 "	101.6 mm
Bertech ESDGPT-10	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film		254 mm			10 in
Bertech ESDGPT-2 1/2	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film	2.5 in	63.5 mm
Bertech ESDGPT-1	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking	1 mils	0.025 mm	0.001 "	Date of Manufacture	Silicone	66 m	216 ft	72 yd	18 Months	Polyester Film					1 in	25.4 mm
Bertech ESDGPT-7/16	2.5 mils	0.064 mm	0.0025 "	1.5 mils	0.0015 in	0.038 mm	356 °F	-40 °F	Masking			Green	Masking Packaging	1 mils	0.025 mm	0.001 "		Silicone	66 m	216 ft	72 yd		Polyester Film	0.44 in	11.13 mm	0.4375 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.36

Description

General part information

ESDGPT Series

Masking Tape Silicone Adhesive Green 2.00" (50.80mm) X 216' (66.0m) 72 yds

Documents

Technical documentation and resources

No documents available
