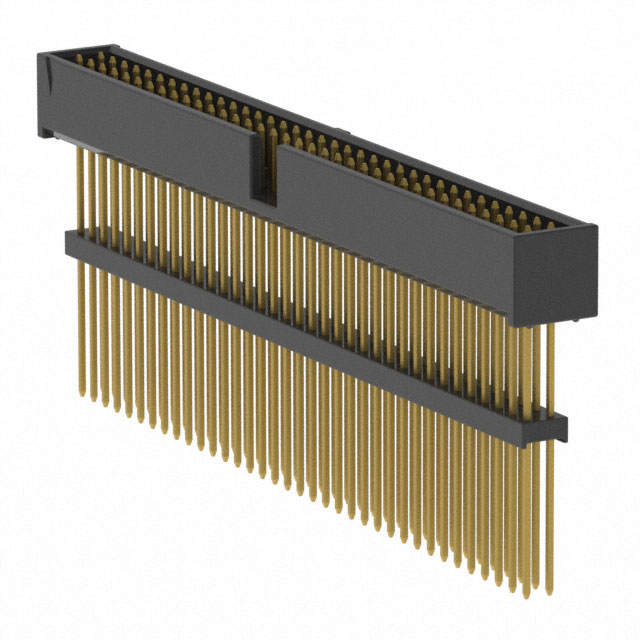

ZSS-136-09-G-D-830

Active

Samtec Inc.

CONN HDR .100" 72POS

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-136-09-G-D-830

Active

Samtec Inc.

CONN HDR .100" 72POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-136-09-G-D-830

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	15.24 mm
Contact Length - Post	0.6 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.83 in
Insulation Height	21.08 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	72
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-136 Series

Part	Style	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Mounting Type	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Material Flammability Rating	Contact Material	Number of Positions Loaded	Features	Contact Finish - Post	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Length - Mating	Contact Length - Mating	Contact Shape	Shrouding	Overall Contact Length	Overall Contact Length	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. ZSS-136-09-G-D-830	Board to Board Cable	Black	0.83 in	21.08 mm	Gold	0.1 in	2.54 mm	Through Hole	Elevated Header	2.54 mm	0.1 in	Solder	10 çin	0.25 çm	3 A	Polyester Glass Filled	3 µin	0.076 µm	Male Pin	-55 °C	125 °C	72	UL94 V-0	Phosphor Bronze	All	Keying Slot	Gold	Push-Pull	15.24 mm	0.6 in	2	6.35 mm	0.25 in	Square	Shrouded - 4 Wall
Samtec Inc. ZSS-136-04-S-D-840-LL
Samtec Inc. ZSS-136-09-S-D-1185	Board to Board Cable	Black	1.185 in	30.1 mm	Gold	0.1 in	2.54 mm	Through Hole	Elevated Header	2.54 mm	0.1 in	Solder	30 Áin	0.76 Ám	3 A	Polyester Glass Filled			Male Pin	-55 °C	125 °C	72	UL94 V-0	Phosphor Bronze	All	Keying Slot	Tin	Push-Pull	6.22 mm	0.245 in	2	6.35 mm	0.25 in	Square	Shrouded - 4 Wall
Samtec Inc. ZSS-136-06-S-D-1020
Samtec Inc. ZSS-136-07-G-D-1020
Samtec Inc. ZSS-136-05-L-D-940	Board to Board Cable	Black	0.94 in	23.88 mm	Gold	0.1 in	2.54 mm	Through Hole	Elevated Header	2.54 mm	0.1 in	Solder	10 çin	0.25 çm	3 A	Polyester Glass Filled			Male Pin	-55 °C	125 °C	72	UL94 V-0	Phosphor Bronze	All	Keying Slot	Tin	Push-Pull	2.29 mm	0.09 "	2	6.35 mm	0.25 in	Square	Shrouded - 4 Wall	1.03 in	26.16 mm
Samtec Inc. ZSS-136-09-L-D-1340	Board to Board Cable	Black	1.34 in	34.04 mm	Gold	0.1 in	2.54 mm	Through Hole	Elevated Header	2.54 mm	0.1 in	Solder	10 çin	0.25 çm	3 A	Polyester Glass Filled			Male Pin	-55 °C	125 °C	72	UL94 V-0	Phosphor Bronze	All	Keying Slot	Tin	Push-Pull	2.29 mm	0.09 "	2	6.35 mm	0.25 in	Square	Shrouded - 4 Wall
Samtec Inc. ZSS-136-04-S-D-810
Samtec Inc. ZSS-136-05-S-D-840	Board to Board Cable	Black			Gold	0.1 in	2.54 mm	Through Hole	Elevated Header	2.54 mm	0.1 in	Solder	30 Áin	0.76 Ám	3 A	Polyester Glass Filled			Male Pin	-55 °C	125 °C	72	UL94 V-0	Phosphor Bronze	All	Keying Slot	Tin	Push-Pull	4.83 mm	0.19 in	2	6.35 mm	0.25 in	Square	Shrouded - 4 Wall	1.03 in	26.16 mm	0.84 in	21.34 mm
Samtec Inc. ZSS-136-09-S-D-1230

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.93

Description

General part information

ZSS-136 Series

Connector Header Through Hole 72 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
