19340100732

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN HV E®

Search across all available documentation for this part.

Active

HARTING Technology Group

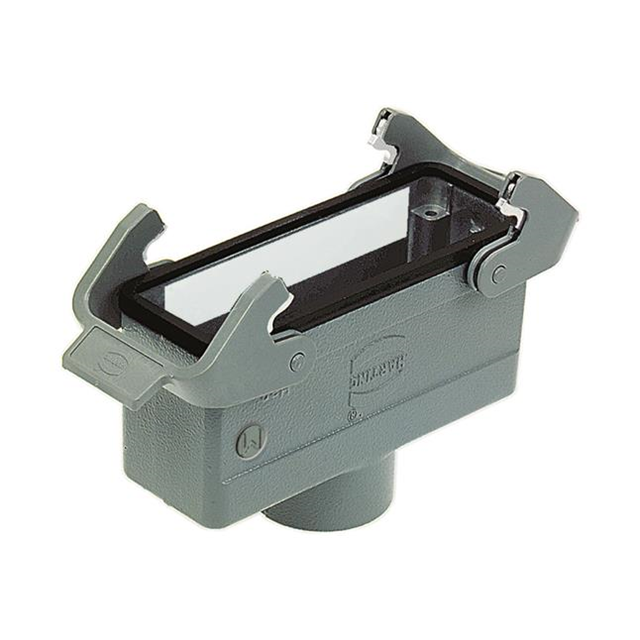

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN HV E®

Technical Specifications

Parameters and characteristics for this part

Specification	19340100732

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.26 "
Size / Dimension [z]	57.4 mm
Style	Bottom Entry
Thread Size	M32

Part	Ingress Protection	Connector Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Housing Finish	Style	Thread Size	Size	Housing Color	Housing Material	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Features
HARTING Technology Group 19340100422	IP65 - Dust Tight Water Resistant	Hood	1.693 in	120 mm	4.724 "	2.165 in	55 mm	43 mm	Powder Coated	Top Entry	M32	24 B	Gray	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C
HARTING Technology Group 19340100547
HARTING Technology Group 19340100297
HARTING Technology Group 19340100271	IP65 - Dust Tight Water Resistant	Base - Box Mount	2.244 "	144 mm	5.669 "	2.205 in	56 mm	57 mm	Powder Coated	Side Entry	M25	24 B	Gray	Aluminum Die Cast	Locking Clip (2) on Base Bottom	125 °C	-40 °C	Feed Through
HARTING Technology Group 19340100732	IP65 - Dust Tight Water Resistant	Hood - Coupling	1.693 in	120 mm	4.724 "	2.26 "	57.4 mm	43 mm	Powder Coated	Bottom Entry	M32	24 B	Gray	Aluminum Die Cast	Locking Clip (2) on Hood Top	125 °C	-40 °C	Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Bottom Entry M32 24B IP65 - Dust Tight, Water Resistant
