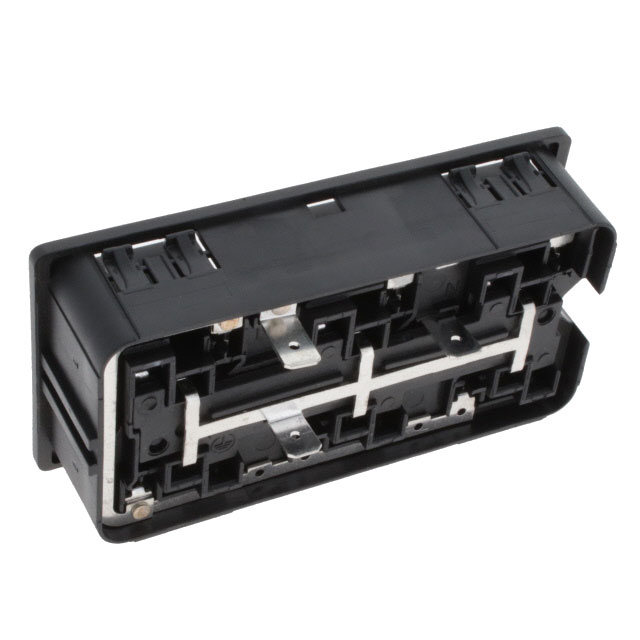

4751-6111-21
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-2-2F PNL QC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4751-6111-21
ActiveSCHURTER Inc.
PWR ENT RCPT IEC320-2-2F PNL QC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4751-6111-21 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | ENEC, CCC, cURus |
| Connector Style | IEC 320-2-2/F |
| Connector Type | Receptacle, Female Sockets |
| Current Rating - Appliance Inlet | 10 A |
| Features | Terminating Cover |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions [custom] | 3 |
| Number of Positions [custom] | 6 |
| Panel Cutout Dimensions [x] | 48.9 mm |
| Panel Cutout Dimensions [y] | 97.2 mm |
| Panel Thickness [custom] | 0.059 in |
| Panel Thickness [custom] | 1.5 mm |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 60 | $ 7.86 | |
Description
General part information
4751 Series
Power Entry Connector Receptacle, Female Sockets IEC 320-2-2/F Panel Mount, Snap-In
