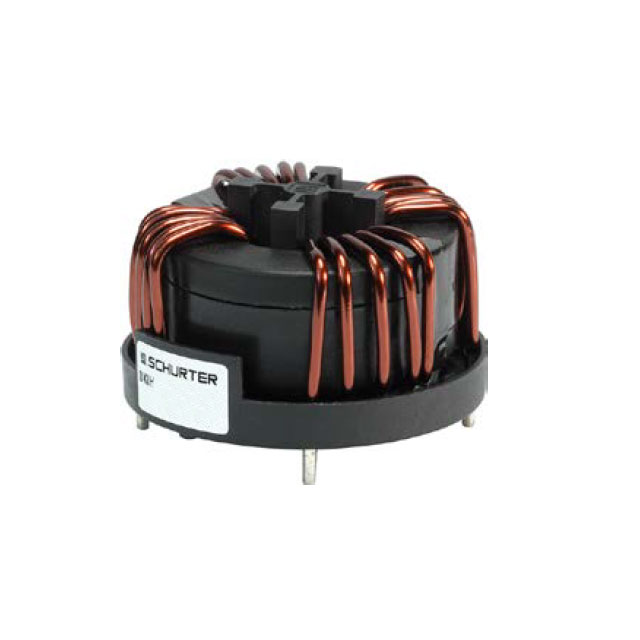

CMC 40A 4LN TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DKIH-3452-40D7-NK

Active

SCHURTER Inc.

CMC 40A 4LN TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DKIH-3452-40D7-NK

Current Rating (Max) [Max]	40 A
Height (Max)	31 mm
Height (Max) [Max]	1.22 in
Mounting Type	Through Hole
Number of Lines	4
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Horizontal, 8 PC Pin
Size / Dimension [diameter]	2.087 in
Size / Dimension [diameter]	53 mm
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

DKIH Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Height (Max)	Height (Max) [Max] [z]	Number of Lines	Mounting Type	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]	Package / Case	Package / Case	Voltage Rating - AC	Height (Max) [Max]	Filter Type	Voltage Rating - DC
SCHURTER Inc. DKIH-3242-202M-NK	100 °C	-40 °C	43 mm	1.693 in	26 mm	1.024 in	2	Through Hole	20 A	2.5 mOhm	Horizontal	4 Lead
SCHURTER Inc. DKIH-3352-16D5	100 °C	-40 °C	53 mm	2.087 in	31 mm		3	Through Hole	16 A	3 mOhm	Horizontal	6 Leads	600 V	1.22 in	Power Line
SCHURTER Inc. DKIH-3452-40D7-NK	100 °C	-40 °C	53 mm	2.087 in	31 mm		4	Through Hole	40 A		Horizontal 8 PC Pin		500 V	1.22 in		500 V
SCHURTER Inc. DKIH-3352-162N-NK	100 °C	-40 °C	53 mm	2.087 in	31 mm		3	Through Hole	16 A	3 mOhm	Horizontal	6 Leads	600 V	1.22 in
SCHURTER Inc. DKIH-3352-1011-NK	100 °C	-40 °C	53 mm	2.087 in	31 mm		3	Through Hole	10 A	7.5 mOhm	Horizontal	6 Leads	600 V	1.22 in
SCHURTER Inc. DKIH-3242-160Q-NK	100 °C	-40 °C	43 mm	1.693 in	26 mm	1.024 in	2	Through Hole	16 A	5.6 mOhm	Horizontal	4 Lead
SCHURTER Inc. DKIH-3458-250K-NK	100 °C	-40 °C	58 mm	2.283 in	31 mm		4	Through Hole	25 A	1.4 mOhm	Horizontal 8 PC Pin		760 V	1.22 in		760 V
SCHURTER Inc. DKIH-3352-254K-NK	100 °C	-40 °C	53 mm	2.087 in	31 mm		3	Through Hole	25 A	1.2 mOhm	Horizontal	6 Leads	600 V	1.22 in
SCHURTER Inc. DKIH-3358-326K-NK	100 °C	-40 °C	58 mm	2.283 in	31 mm		3	Through Hole	32 A	1.1 mOhm	Horizontal	6 Leads	600 V	1.22 in
SCHURTER Inc. DKIH-3458-105U-NK	100 °C	-40 °C	58 mm	2.283 in	31 mm		4	Through Hole	10 A	8 mOhm	Horizontal 8 PC Pin		760 V	1.22 in		760 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	20	$ 27.01

Description

General part information

DKIH Series

4 Line Common Mode Choke Through Hole 40A DCR
