Q-3B03H0003012I

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 12"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO SMB 12"

Technical Specifications

Parameters and characteristics for this part

Specification	Q-3B03H0003012I

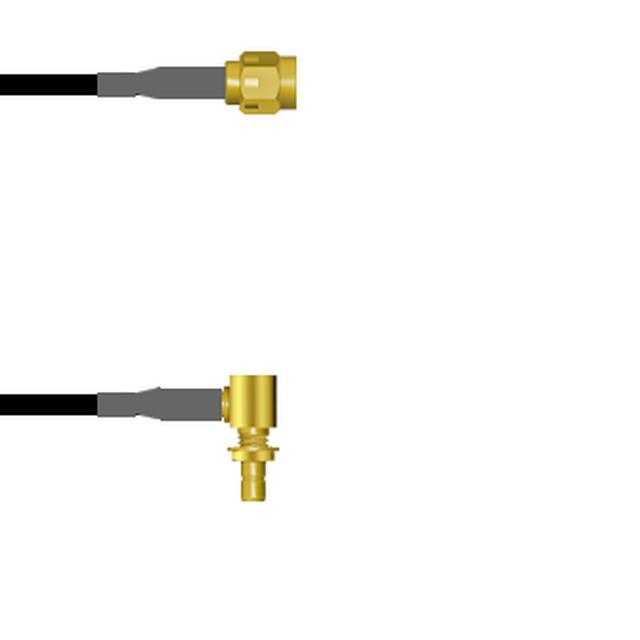

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMB Jack, Right Angle
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	SMA to SMB

Part	1st Contact Gender	Style	2nd Connector Mounting Type	Cable Impedance	Color	2nd Contact Gender	1st Connector Mounting Type	1st Connector	Cable Type	Frequency - Max [Max]	Connector Impedance	Overall Impedance	2nd Connector Mounting Feature	Features	2nd Connector	Length	Length	Length
Amphenol Custom Cable Q-3B03H0003012I	Male	SMA to SMB	Panel Mount	50 Ohms	Black	Male	Free Hanging (In-Line)	SMA Plug	RG-174	1 GHz	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	Shielded	SMB Jack Right Angle	12 "	304.8 mm
Amphenol Custom Cable Q-3B03H0005024I	Male	SMA to SMB	Panel Mount	50 Ohms	Copper	Male	Free Hanging (In-Line)	SMA Plug	RG-316	3 GHz	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	Shielded	SMB Jack Right Angle	24 "	609.6 mm
Amphenol Custom Cable Q-3B03H00031.5M	Male	SMA to SMB	Panel Mount	50 Ohms	Black	Male	Free Hanging (In-Line)	SMA Plug	RG-174	1 GHz	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	Shielded	SMB Jack Right Angle	59.1 in	1.5 m	4.9 ft
Amphenol Custom Cable Q-3B03H0003072I	Male	SMA to SMB	Panel Mount	50 Ohms	Black	Male	Free Hanging (In-Line)	SMA Plug	RG-174	1 GHz	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	Shielded	SMB Jack Right Angle	72 in	1.8 m	6 ft
Amphenol Custom Cable Q-3B03H0005003I	Male	SMA to SMB	Panel Mount	50 Ohms	Copper	Male	Free Hanging (In-Line)	SMA Plug	RG-316	3 GHz	50 Ohms	50 Ohms	Bulkhead - Front Side Nut	Shielded	SMB Jack Right Angle	3 in	76.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to SMB RG-174 12.00" (304.80mm)
