307-024-556-202
ActiveEDAC Inc.

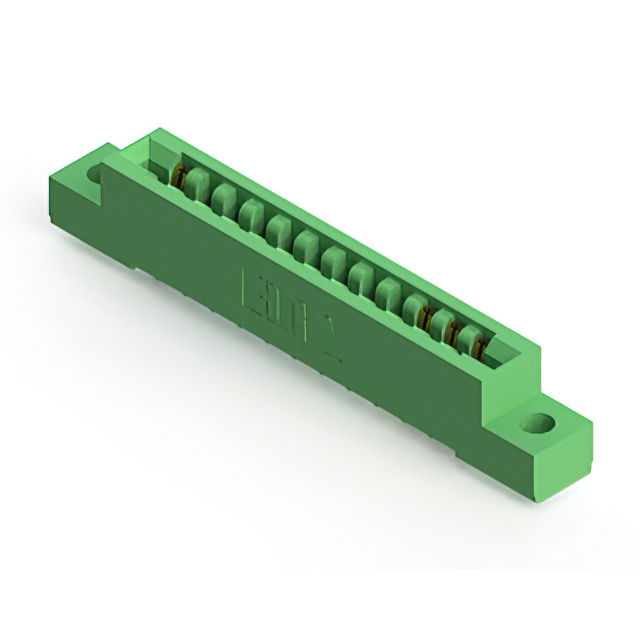

CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
307-024-556-202
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 24POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 307-024-556-202 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Features | Card Extender |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 24 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
307-024 Series
...
| Part | Termination Rows | Color | Read Out | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Gender | Contact Type | Contact Material | Contact Finish | Pitch [x] | Pitch [x] | Mounting Type | Card Type | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Termination | Contact Finish Thickness | Contact Finish Thickness | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Green | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Female | Semi Bellows | Copper Alloy | Tin | 0.156 in | 3.96 mm | Through Hole Right Angle | Non Specified - Single Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 24 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | |||
EDAC Inc. | 1 | Green | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Female | Semi Bellows | Copper Alloy | Gold | 0.156 in | 3.96 mm | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 24 | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | Solder | 10 Áin | 0.25 Ám | |
EDAC Inc. | 1 | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 48 | Female | Semi Bellows | Copper Alloy | Gold | 0.156 in | 3.96 mm | Through Hole | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 24 | Flush Mount M3 Threaded Insert Top Opening | Solder Eyelet(s) | 10 Áin | 0.25 Ám | |||
EDAC Inc. | 1 | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 48 | Female | Semi Bellows | Copper Alloy | Tin | 0.156 in | 3.96 mm | Through Hole Right Angle | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 24 | Solder | ||||||
EDAC Inc. | 1 | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 48 | Female | Semi Bellows | Copper Alloy | Tin | 0.156 in | 3.96 mm | Through Hole Right Angle | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 24 | Flush Mount M3 Threaded Insert Top Opening | Solder | |||||
EDAC Inc. | 2 | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Female | Semi Bellows | Copper Alloy | Tin | 0.156 in | 3.96 mm | Through Hole Right Angle | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Solder | |||||
EDAC Inc. | 1 | Green | Single | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Female | Semi Bellows | Copper Alloy | Tin | 0.156 in | 3.96 mm | Through Hole | Non Specified - Single Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 24 | Solder | ||||||
EDAC Inc. | 2 | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Female | Semi Bellows | Copper Alloy | Tin | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 12 | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | |||||
EDAC Inc. | 2 | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Female | Semi Bellows | Copper Alloy | Gold | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 12 | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | Solder | 10 Áin | 0.25 Ám | Card Extender |
EDAC Inc. | 2 | Green | Dual | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 24 | Female | Semi Bellows | Copper Alloy | Tin | 0.156 in | 3.96 mm | Board Edge Straddle Mount | Non Specified - Dual Edge | Polyester Thermoplastic | -40 °C | 105 ░C | 12 | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.63 | |
Description
General part information
307-024 Series
24 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
