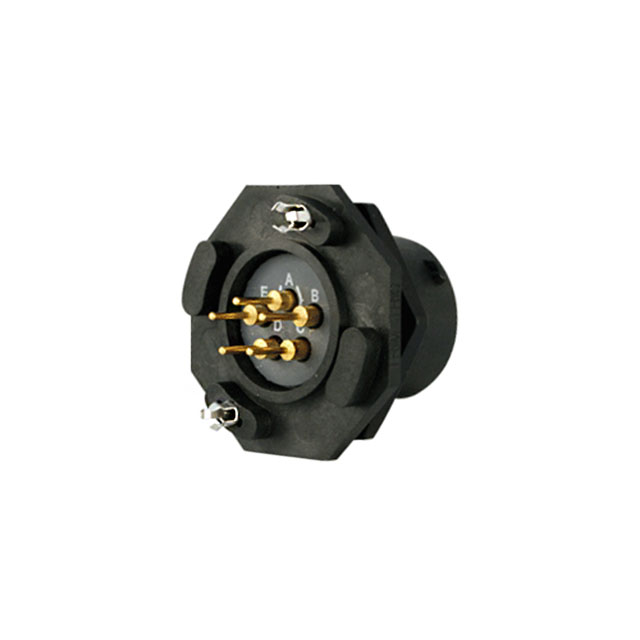

UTS714D5P32

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

UTS714D5P32

Active

Souriau-Sunbank by Eaton

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTS714D5P32

Applications	Instrumentation, Energy, Lighting, Telecommunications
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	16 Áin
Contact Finish Thickness - Mating	0.41 Ám
Contact Material	Brass
Current Rating (Amps)	12 A
Fastening Type	Bayonet Lock
Features	UV Resistant, Board Lock
Ingress Protection	IP68, IP69K
Insert Material	Polychloroprene
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Plastic
Shell Size - Insert	14-5
Shielding	Unshielded
Termination	Solder
Voltage Rating	600 V

UTS71 Series

...

Part	Primary Material	Current Rating (Amps)	Ingress Protection	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Mounting Feature	Features	Shielding	Fastening Type	Connector Type	Contact Finish - Mating	Voltage Rating	Contact Material	Orientation	Material Flammability Rating	Mounting Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Color	Number of Positions [custom]	Number of Positions [custom]	Accessory Type	Shell Size - Insert	For Use With/Related Products	Housing Color	Contact Type	Type	Shell Size - Insert	Number of Positions	Contact Size	Note	Contact Shape	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Souriau-Sunbank by Eaton UTS7147PSEK9	Plastic	10 A	IP68 IP69K	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	Bulkhead - Front Side Nut	Board Lock UV Resistant	Unshielded	Bayonet Lock	Male Pins Receptacle	Gold	500 V	Brass	N	UL94 V-0	Panel Mount Through Hole	14	7	Solder	-40 °C	105 ░C	Nylon Polyamide (PA)	Black	1	6
Souriau-Sunbank by Eaton UTS712CCRY																								Yellow			Coding Ring	12	Trim Trio® UTS Receptacles
Souriau-Sunbank by Eaton UTS7183G1SNPT			IP68 IP69K				Bulkhead - Rear Side Nut		Unshielded	Bayonet Lock	Receptacle Housing				N	UL94 V-0					-40 °C	105 ░C								Black	Crimp	For Female Sockets	18-3	4	8	Contacts Not Included Jam Nut Not Included	Circular
Souriau-Sunbank by Eaton UTS714E19P	Plastic	4 A	IP68 IP69K	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	Bulkhead - Front Side Nut	UV Resistant	Unshielded	Bayonet Lock	Male Pins Receptacle	Gold	250 VDC	Brass	N	UL94 V-0					-40 °C	105 ░C	Polychloroprene	Black										19				19	14
Souriau-Sunbank by Eaton UTS710E7P	Plastic	6 A	IP68 IP69K	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	Bulkhead - Front Side Nut	UV Resistant	Unshielded	Bayonet Lock	Male Pins Receptacle	Gold	250 VDC	Brass	N	UL94 V-0					-40 °C	105 ░C	Polychloroprene	Black									10-7	7
Souriau-Sunbank by Eaton UTS714D5P32	Plastic	12 A	IP68 IP69K	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	Bulkhead - Front Side Nut	Board Lock UV Resistant	Unshielded	Bayonet Lock	Male Pins Receptacle	Gold	600 V	Brass	N	UL94 V-0	Panel Mount Through Hole			Solder	-40 °C	105 ░C	Polychloroprene	Black									14-5
Souriau-Sunbank by Eaton UTS7106S			IP67 IP69K				Bulkhead - Front Side Nut		Unshielded	Bayonet Lock	Receptacle Housing				N	UL94 V-0					-40 °C	105 ░C								Black	Crimp	For Female Sockets	10-6	6	20	Contacts Not Included	Circular
Souriau-Sunbank by Eaton UTS718X2M3SNPT			IP68 IP69K				Bulkhead - Rear Side Nut		Unshielded	Bayonet Lock	Receptacle Housing				N	UL94 V-0					-40 °C	105 ░C								Black	Crimp	For Female Sockets	18X2		8 16	Contacts Not Included Jam Nut Not Included	Circular
Souriau-Sunbank by Eaton UTS712D10S32	Plastic	4.5 A	IP68 IP69K	16 Áin	0.41 Ám	Energy Instrumentation Lighting Telecommunications	Bulkhead - Front Side Nut	Board Lock UV Resistant	Unshielded	Bayonet Lock	Receptacle Female Sockets	Gold	250 VDC	Brass	N	UL94 V-0	Panel Mount Through Hole			Solder	-40 °C	105 ░C	Polychloroprene	Black										10
Souriau-Sunbank by Eaton UTS710CCRR																								Red			Coding Ring	10	Trim Trio® UTS Receptacles

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UTS71 Series

5 Position Circular Connector Receptacle, Male Pins Solder
