35401R0JT

Active

TE Connectivity Passive Product

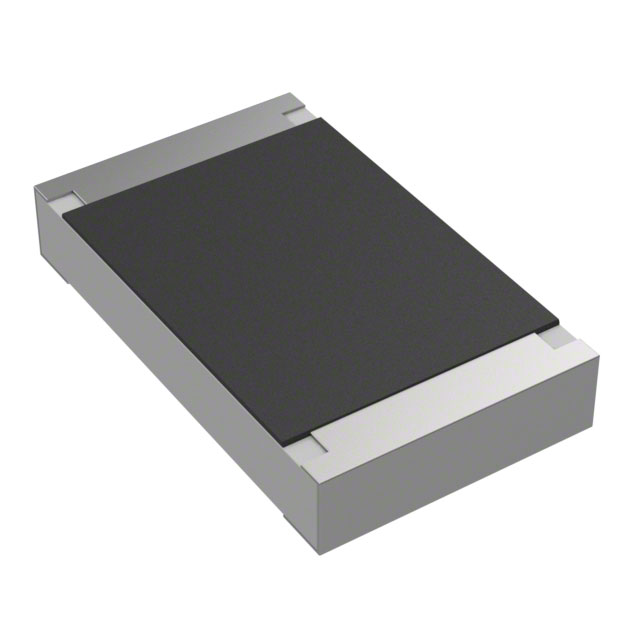

RES 3540 1R0 5%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

35401R0JT

Active

TE Connectivity Passive Product

RES 3540 1R0 5%

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	35401R0JT

Composition	Thick Film
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Number of Terminations	2
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Power (Watts)	4 W
Resistance	1 Ohms
Size / Dimension [x]	7.1 mm
Size / Dimension [x]	0.28 in
Size / Dimension [y]	0.165 "
Size / Dimension [y]	4.2 mm
Supplier Device Package	2816
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

3540 Series

Part	Number of Terminations	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Resistance	Package / Case	Temperature Coefficient	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Composition	Tolerance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)
TE Connectivity Passive Product 35401R0JT	2	2816	155 °C	-55 °C	1 Ohms	Nonstandard	200 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	5 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 35402M7FT	2	2816	155 °C	-55 °C	2.7 MOhms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	1 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 35401K0FT	2	2816	155 °C	-55 °C	1000 Ohms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	1 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 35408M2FT	2	2816	155 °C	-55 °C	8.2 MOhms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	1 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 35401M5JT	2	2816	155 °C	-55 °C	1.5 MOhms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	5 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 3540390RFT	2	2816	155 °C	-55 °C	390 Ohms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	1 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 3540100KJT	2	2816	155 °C	-55 °C	100 kOhms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	5 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 354015KFT	2	2816	155 °C	-55 °C	15 kOhms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	1 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 354015RJT	2	2816	155 °C	-55 °C	15 Ohms	Nonstandard	100 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	5 %	1.2 mm	0.047 in	4 W
TE Connectivity Passive Product 35401R3FT	2	2816	155 °C	-55 °C	1.3 Ohms	Nonstandard	200 ppm/°C	7.1 mm	0.165 "	0.28 in	4.2 mm	Thick Film	1 %	1.2 mm	0.047 in	4 W
