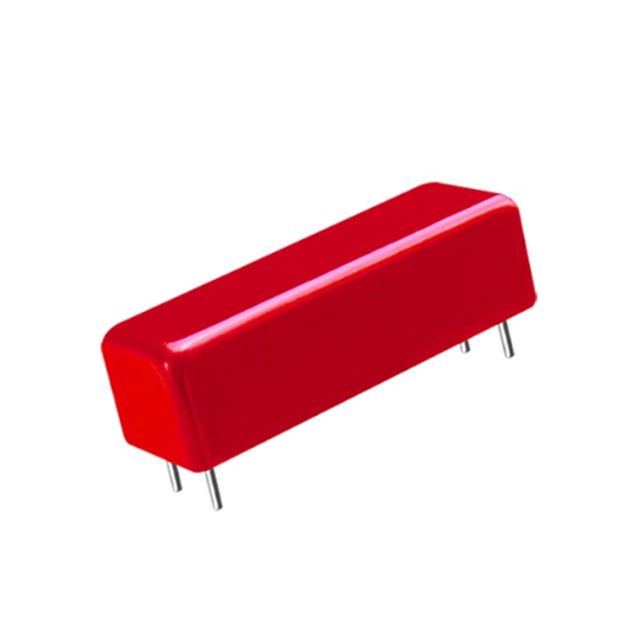

7103-05-1011

Active

Coto Technology

RELAY REED 3PST 500MA 5V

Search across all available documentation for this part.

Active

Coto Technology

RELAY REED 3PST 500MA 5V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage	Operate Time	Features	Coil Current	Mounting Type	Must Release Voltage	Must Operate Voltage	Termination Style	Coil Voltage	Contact Form	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Release Time	Coil Type	Coil Resistance
Coto Technology 7103-05-1011	200 VDC 200 VAC	1 ms	Diode Electrostatic Shield	50 mA	Through Hole	0.4 VDC	3.75 VDC	PC Pin	5 VDC	3PST-NO (3 Form A)	0.5 A	85 °C	-20 C	0.1 ms	Non Latching	100 Ohms
Coto Technology 7103-12-1010	200 VDC 200 VAC	1 ms	Electrostatic Shield	15 mA	Through Hole	1 VDC	9 VDC	PC Pin	12 VDC	3PST-NO (3 Form A)	0.5 A	85 °C	-20 C	0.1 ms	Non Latching	800 Ohms
Coto Technology 7103-24-1010	200 VDC 200 VAC	1 ms	Electrostatic Shield	10 mA	Through Hole	2 VDC	18 VDC	PC Pin	24 VDC	3PST-NO (3 Form A)	0.5 A	85 °C	-20 C	0.1 ms	Non Latching	2.4 kOhms
Coto Technology 7103-12-1001	200 VDC 200 VAC	1 ms	Diode	15 mA	Through Hole	1 VDC	9 VDC	PC Pin	12 VDC	3PST-NO (3 Form A)	0.5 A	85 °C	-20 C	0.1 ms	Non Latching	800 Ohms
Coto Technology 7103-12-1000	200 VDC 200 VAC	1 ms		15 mA	Through Hole	1 VDC	9 VDC	PC Pin	12 VDC	3PST-NO (3 Form A)	0.5 A	85 °C	-20 C	0.1 ms	Non Latching	800 Ohms
Coto Technology 7103-05-1100	200 VDC 200 VAC	1 ms		50 mA	Through Hole	0.4 VDC	3.75 VDC	PC Pin	5 VDC	3PST-NO (3 Form A)	0.5 A	85 °C	-20 C	0.1 ms	Non Latching	100 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY REED 3PST 500MA 5V
