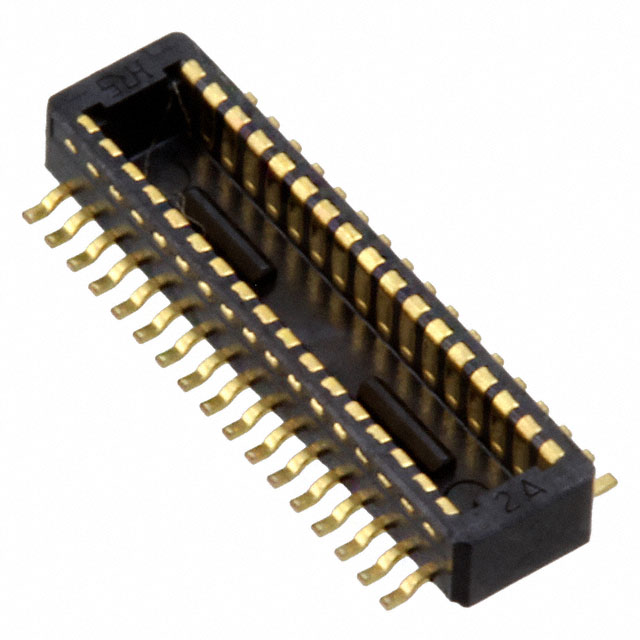

DF40F(2.0)-30DP-0.4V(51)
ActiveHirose Electric USA, Inc.
PLUG, 0.4 MM PITCH, 30POS., STRA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF40F(2.0)-30DP-0.4V(51)
ActiveHirose Electric USA, Inc.
PLUG, 0.4 MM PITCH, 30POS., STRA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF40F(2.0)-30DP-0.4V(51) |
|---|---|
| Connector Type | Outer Shroud Contacts, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 1.97 Áin |
| Contact Finish Thickness | 0.05 Ám |
| Features | Pick and Place, Solder Retention |
| Height Above Board | 0.124 " |
| Height Above Board | 3.15 mm |
| Mated Stacking Heights | 2 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.00 | |
| 10 | $ 2.73 | |||
| 25 | $ 2.58 | |||
| 50 | $ 2.52 | |||
| 100 | $ 2.40 | |||
| 250 | $ 2.10 | |||
| 500 | $ 2.04 | |||
| 1000 | $ 1.74 | |||
| Digi-Reel® | 1 | $ 3.00 | ||
| 10 | $ 2.73 | |||
| 25 | $ 2.58 | |||
| 50 | $ 2.52 | |||
| 100 | $ 2.40 | |||
| 250 | $ 2.10 | |||
| 500 | $ 2.04 | |||
| 1000 | $ 1.74 | |||
| Tape & Reel (TR) | 3000 | $ 1.47 | ||
| 6000 | $ 1.39 | |||
Description
General part information
DF40F Series
30 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
