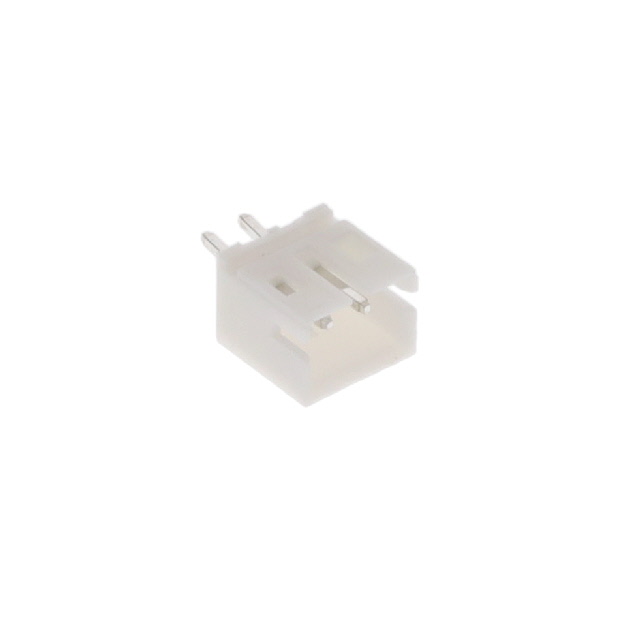

2SH-C-02-TS

Active

Adam Tech

CONN HEADER VERT 2POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

2SH-C-02-TS

Active

Adam Tech

CONN HEADER VERT 2POS 2MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2SH-C-02-TS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Insulation Color	White
Insulation Height	0.24 in
Insulation Height	6.1 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Kinked Pin, Solder
Voltage Rating	100 VAC

2SH-C Series

Part	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Material Flammability Rating	Voltage Rating	Number of Rows	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Insulation Color	Contact Shape	Mounting Type	Connector Type	Insulation Material	Number of Positions	Style	Current Rating (Amps)	Features	Contact Length - Post	Contact Length - Post
Adam Tech 2SH-C-06-TS	Kinked Pin Solder	-25 °C	85 °C	All	0.24 in	6.1 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall	0.134 in	3.4 mm	Male Pin	White	Square	Through Hole	Header	Polyamide (PA66) Nylon 6/6	6	Board to Cable/Wire	2 A
Adam Tech 2SH-C-02-TS	Kinked Pin Solder	-25 °C	85 °C	All	0.24 in	6.1 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall	0.134 in	3.4 mm	Male Pin	White	Square	Through Hole	Header	Polyamide (PA66) Nylon 6/6	2	Board to Cable/Wire	2 A
Adam Tech 2SH-C-04-TS	Kinked Pin Solder	-25 °C	85 °C	All	0.24 in	6.1 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall	0.134 in	3.4 mm	Male Pin	White	Square	Through Hole	Header	Polyamide (PA66) Nylon 6/6	4	Board to Cable/Wire	2 A
Adam Tech 2SH-C-07-TS	Kinked Pin Solder	-25 °C	85 °C	All	0.24 in	6.1 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall	0.134 in	3.4 mm	Male Pin	White	Square	Through Hole	Header	Polyamide (PA66) Nylon 6/6	7	Board to Cable/Wire	2 A
Adam Tech 2SH-C-03-TS	Kinked Pin Solder	-25 °C	85 °C	All	0.24 in	6.1 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall	0.134 in	3.4 mm	Male Pin	White	Square	Through Hole	Header	Polyamide (PA66) Nylon 6/6		Board to Cable/Wire	2 A
Adam Tech 2SH-C-04-TS-SMT	Solder	-25 °C	85 °C	All	0.26 in	6.6 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall			Male Pin	White	Square	Surface Mount	Header	Polyamide (PA46) Nylon 4/6	4	Board to Cable/Wire	2 A	Solder Retention
Adam Tech 2SH-C-09-TR	Kinked Pin Solder	-25 °C	85 °C	All	0.197 in	5 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall			Male Pin	White	Square	Through Hole Right Angle	Header	Polyamide (PA66) Nylon 6/6	9	Board to Cable/Wire	2 A		0.13 in	3.3 mm
Adam Tech 2SH-C-07-TR	Kinked Pin Solder	-25 °C	85 °C	All	0.197 in	5 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall			Male Pin	White	Square	Through Hole Right Angle	Header	Polyamide (PA66) Nylon 6/6	7	Board to Cable/Wire	2 A		0.13 in	3.3 mm
Adam Tech 2SH-C-06-TR	Kinked Pin Solder	-25 °C	85 °C	All	0.197 in	5 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall			Male Pin	White	Square	Through Hole Right Angle	Header	Polyamide (PA66) Nylon 6/6	6	Board to Cable/Wire	2 A		0.13 in	3.3 mm
Adam Tech 2SH-C-07-TS-SMT	Solder	-25 °C	85 °C	All	0.26 in	6.6 mm	Tin	0.079 in	2 mm	Brass	UL94 V-0	100 VAC	1	Shrouded - 4 Wall			Male Pin	White	Square	Surface Mount	Header	Polyamide (PA46) Nylon 4/6	7	Board to Cable/Wire	2 A	Solder Retention
