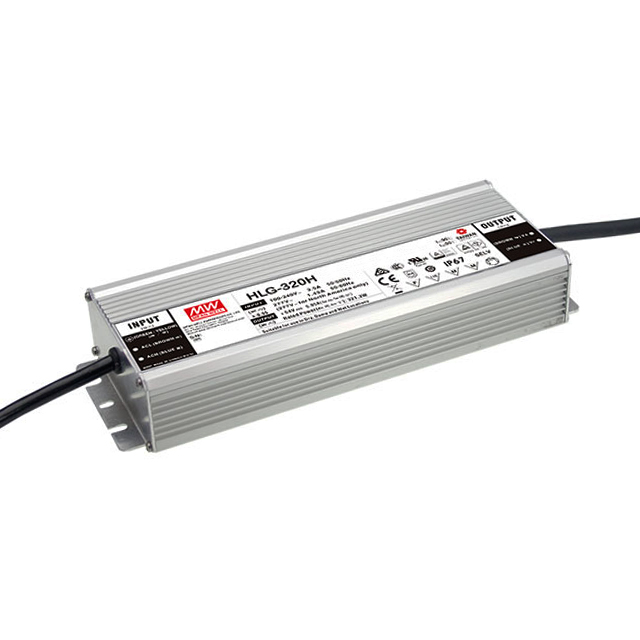

HLG-320H-54

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 54V 5.95A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-320H-54

Active

MEAN WELL USA Inc.

LED DVR CC/CV AC/DC 54V 5.95A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-320H-54

Approval Agency	RCM, cURus, CB, CE, TUV, CCC, PSE
Current - Output (Max) [Max]	5.95 A
Efficiency	95 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	321 W
Ratings	IP67
Size / Dimension [x]	8.87 in
Size / Dimension [x]	225.2 mm
Size / Dimension [y]	90 mm
Size / Dimension [y]	3.54 in
Size / Dimension [z]	1.72 in
Size / Dimension [z]	43.8 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output	54 V

HLG-320H Series

Part	Topology	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Voltage - Output	Current - Output (Max) [Max]	Power (Watts)	Efficiency	Type	Voltage - Input (Min) [Min]	Termination Style	Ratings	Voltage - Isolation	Approval Agency	Features	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Dimming	Voltage - Output [Max]	Voltage - Output [Min]	Current - Output (Max)
MEAN WELL USA Inc. HLG-320H-54	AC DC Converter	90 °C	-40 °C	305 VAC	54 V	5.95 A	321 W	95 %	Constant Current Voltage	90 VAC	Wire Leads	IP67	3750 V	CB CCC CE cURus PSE RCM TUV	OCP OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm
MEAN WELL USA Inc. HLG-320H-42AB	AC DC Converter	90 °C	-40 °C	305 VAC	42 V	7.65 A	321 W	95 %	Constant Current Voltage	90 VAC	Wire Leads	IP65	3750 V	CB CCC CE cURus EAC KC PSE RCM TUV	OCP OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm
MEAN WELL USA Inc. HLG-320H-24B	AC DC Converter	90 °C	-40 °C	305 VAC	24 V	13.34 A	320 W	94.5 %	Constant Current Voltage	90 VAC	Wire Leads	IP67	3750 V	CB CCC CE cURus PSE RCM TUV	OCP OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm	Analog PWM
MEAN WELL USA Inc. HLG-320H-20B	AC DC Converter	90 °C	-40 °C	305 VAC	20 V	15 A	300 W	94 %	Constant Current Voltage	90 VAC	Wire Leads	IP67	3750 V	CB CCC CE cURus PSE RCM TUV	OCP OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm	Analog PWM
MEAN WELL USA Inc. HLG-320H-C1400A	AC DC Converter	85 °C	-40 °C	305 VAC		1.4 A	321 W	94 %	Constant Current	90 VAC	Wire Leads	IP65	3750 V	CB CCC CE cURus ENEC	OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm		229 V	114 V
MEAN WELL USA Inc. HLG-320H-C2800AB	AC DC Converter	85 °C	-40 °C	305 VAC			319 W	94 %	Constant Current	90 VAC	Wire Leads	IP65	3750 V	CB CCC CE cURus ENEC	OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm		114 V	57 V	2.8 A
MEAN WELL USA Inc. HLG-320H-36AB	AC DC Converter	90 °C	-40 °C	305 VAC	36 V	8.9 A	320 W	95 %	Constant Current Voltage	90 VAC	Wire Leads	IP65	3750 V	CB CCC CE cURus EAC KC PSE RCM TUV	OCP OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm
MEAN WELL USA Inc. HLG-320H-30C	AC DC Converter	90 °C	-40 °C	305 VAC		10.7 A	321 W	94.5 %	Constant Current Voltage	90 VAC	Wire Leads		3750 V	CB CCC CE cURus PSE RCM TUV	OCP OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm		32 VDC	26 V
MEAN WELL USA Inc. HLG-320H-C1050A	AC DC Converter	85 °C	-40 °C	305 VAC		1.05 A	320 W	94 %	Constant Current	90 VAC	Wire Leads	IP65	3750 V	CB CCC CE cURus ENEC	OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm		305 V	152 V
MEAN WELL USA Inc. HLG-320H-15C	AC DC Converter	90 °C	-40 °C	305 VAC		19 A	285 W	93 %	Constant Current Voltage	90 VAC	Wire Leads		3750 V	CB CCC CE cURus PSE RCM TUV	OCP OTP OVP SCP	Chassis Mount	1	90 mm	8.87 in	1.72 in	3.54 in	43.8 mm	225.2 mm		17 V	13.5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 120.27
		5	$ 109.96
		10	$ 105.79
		25	$ 100.52

Description

General part information

HLG-320H Series

5.95A 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
