116-87-642-41-007101

Active

PRECI-DIP SA

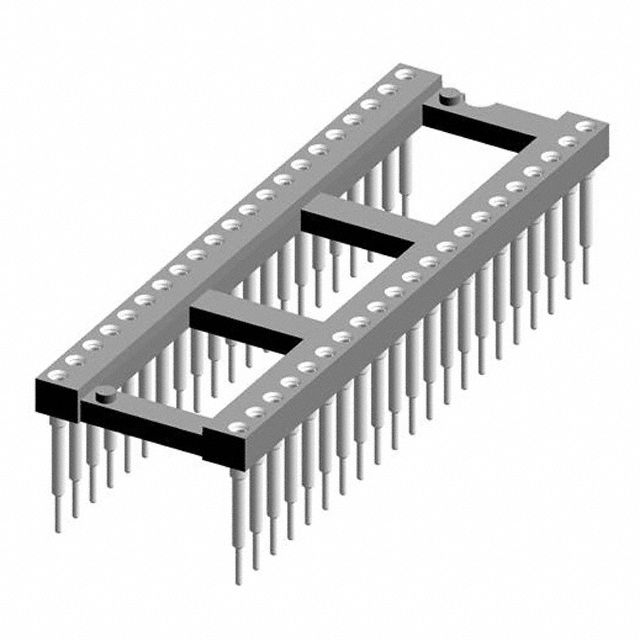

CONN IC DIP SOCKET 42POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

116-87-642-41-007101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 42POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	116-87-642-41-007101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame, Elevated
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	42
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	DIP
Type	0.6 in
Type	15.24 mm

116-87 Series

...

Part	Contact Material - Post [custom]	Termination	Mounting Type	Current Rating (Amps)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Pitch - Mating	Pitch - Mating	Type	Type	Type	Contact Finish - Post	Housing Material	Contact Finish Thickness - Mating	Material Flammability Rating	Features	Operating Temperature [Min]	Operating Temperature [Max]	Contact Resistance	Termination Post Length	Termination Post Length	Contact Finish - Mating	Contact Material - Mating	Pitch - Post	Pitch - Post	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 116-87-310-41-007101	Brass	Solder	Through Hole	1 A	2 x 5	10	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in
PRECI-DIP SA 116-87-652-41-002101	Brass	Solder	Through Hole	1 A			0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in
PRECI-DIP SA 116-87-432-41-006101	Brass	Solder	Through Hole	1 A	2 x 16		0.1 in	2.54 mm	0.4 in	10.16 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in	32
PRECI-DIP SA 116-87-624-41-001101	Brass	Solder	Through Hole	1 A			0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in		24
PRECI-DIP SA 116-87-642-41-007101	Brass	Solder	Through Hole	1 A			0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in		42
PRECI-DIP SA 116-87-610-41-013101	Brass	Solder	Through Hole	1 A	2 x 5	10	0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in
PRECI-DIP SA 116-87-304-41-018101	Brass	Solder	Through Hole	1 A			0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in			4
PRECI-DIP SA 116-87-318-41-006101	Brass	Solder	Through Hole	1 A			0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in		18
PRECI-DIP SA 116-87-648-41-008101	Brass	Solder	Through Hole	1 A			0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in		48
PRECI-DIP SA 116-87-632-41-007101	Brass	Solder	Through Hole	1 A	2 x 16		0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Tin	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	UL94 V-0	Elevated Open Frame	-55 °C	125 °C	10 mOhm	3.18 mm	0.125 in	Gold	Beryllium Copper	2.54 mm	0.1 in	32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	280	$ 4.84

Description

General part information

116-87 Series

42 (2 x 21) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
