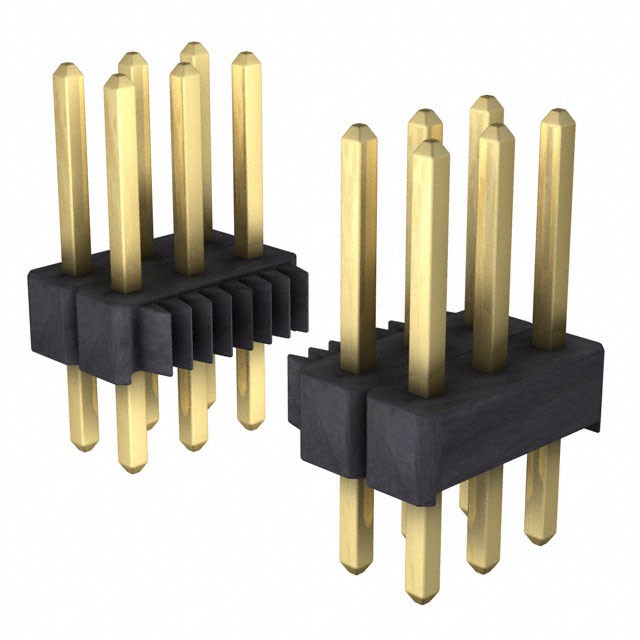

894-70-027-10-002101

Active

PRECI-DIP SA

CONN HEADER VERT 27POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

894-70-027-10-002101

Active

PRECI-DIP SA

CONN HEADER VERT 27POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	894-70-027-10-002101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	12.54 mm
Overall Contact Length	0.494 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

894-70 Series

...

Part	Contact Material	Number of Rows	Current Rating (Amps)	Contact Finish - Post	Voltage Rating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Shrouding	Termination	Contact Finish Thickness - Post	Material Flammability Rating	Mounting Type	Connector Type	Insulation Material	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Shape	Overall Contact Length	Overall Contact Length	Insulation Height [z]	Insulation Height [z]
PRECI-DIP SA 894-70-120-10-003101	Brass	3	3 A	Gold	150 VDC	Flash	0.118 in	3 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.335 in	8.51 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	120	0.1 in	2.54 mm	All	Square	0.553 in	14.04 mm
PRECI-DIP SA 894-70-021-10-004101	Brass	3	3 A	Gold	150 VDC	Flash	0.118 in	3 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.587 in	14.91 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	21	0.1 in	2.54 mm	All	Square	0.805 "	20.44 mm
PRECI-DIP SA 894-70-108-10-001101	Brass	3	3 A	Gold	150 VDC	Flash	0.122 "	3.1 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.236 in	6 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	108	0.1 in	2.54 mm	All	Square	0.458 "	11.64 mm
PRECI-DIP SA 894-70-084-20-002101	Brass	3	3 A	Gold	150 VDC	Flash	0.118 in	3 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole Right Angle	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.276 in	7 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	84			All	Square			0.3 in	7.62 mm
PRECI-DIP SA 894-70-105-20-001101	Brass	3	3 A	Gold	150 VDC	Flash	0.118 in	3 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole Right Angle	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.236 in	6 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	105			All	Square			0.3 in	7.62 mm
PRECI-DIP SA 894-70-036-10-001101	Brass	3	3 A	Gold	150 VDC	Flash	0.122 "	3.1 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.236 in	6 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	36	0.1 in	2.54 mm	All	Square	0.458 "	11.64 mm
PRECI-DIP SA 894-70-114-10-003101	Brass	3	3 A	Gold	150 VDC	Flash	0.118 in	3 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.335 in	8.51 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	114	0.1 in	2.54 mm	All	Square	0.553 in	14.04 mm
PRECI-DIP SA 894-70-069-20-002101	Brass	3	3 A	Gold	150 VDC	Flash	0.118 in	3 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole Right Angle	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.276 in	7 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	69			All	Square			0.3 in	7.62 mm
PRECI-DIP SA 894-70-027-10-002101	Brass	3	3 A	Gold	150 VDC	Flash	0.118 in	3 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.276 in	7 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	27	0.1 in	2.54 mm	All	Square	0.494 in	12.54 mm
PRECI-DIP SA 894-70-084-10-001101	Brass	3	3 A	Gold	150 VDC	Flash	0.122 "	3.1 mm	Unshrouded	Solder	Flash	UL94 V-0	Through Hole	Header	Glass Filled Nylon Polyamide (PA)	0.1 in	2.54 mm	Black	0.236 in	6 mm	Push-Pull	-55 °C	125 °C	Male Pin	Gold	2.54 mm	0.1 in	84	0.1 in	2.54 mm	All	Square	0.458 "	11.64 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	440	$ 1.59

Description

General part information

894-70 Series

Connector Header Through Hole 27 position 0.100" (2.54mm)
