PLB3G520005

Active

ITT Cannon, LLC

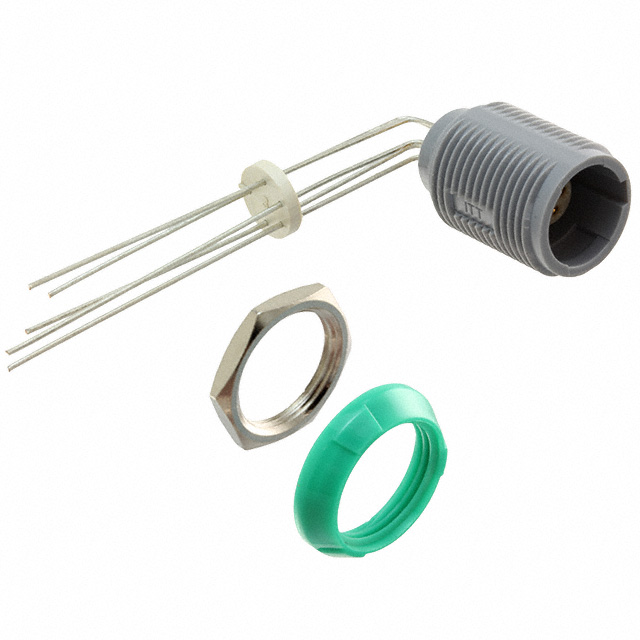

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PLB3G520005

Active

ITT Cannon, LLC

CONN RCPT FMALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PLB3G520005

Applications	Testing Equipment, Medical, Industrial, Measurement
Color	Green, Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Fastening Type	Push-Pull, Latch Lock
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Mounting Feature	Bulkhead - Front or Rear Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-50 °C
Orientation	0 °
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shielding	Unshielded
Termination	Solder

PLB3G Series

...

Part	Shell Material	Insert Material	Connector Type	Mounting Feature	Applications	Contact Material	Contact Finish - Mating	Fastening Type	Mounting Type	Primary Material	Current Rating (Amps)	Color	Number of Positions	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Ingress Protection	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation
ITT Cannon, LLC PLB3G620C09	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	3 A	Blue Gray	9	Solder	150 °C	-50 °C	Unshielded	IP50	C	0.51 µm	20 µin
ITT Cannon, LLC PLB3G520E02	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	10 A	Gray Green	2	Solder	150 °C	-50 °C	Unshielded	IP50	E	0.51 µm	20 µin
ITT Cannon, LLC PLB3G220H09	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	3 A	Gray Red	9	Solder	150 °C	-50 °C	Unshielded	IP50	H	0.51 µm	20 µin
ITT Cannon, LLC PLB3G520C14	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	2 A	Gray Green	14	Solder	150 °C	-50 °C	Unshielded	IP50	C	0.51 µm	20 µin
ITT Cannon, LLC PLB3G520005	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	7 A	Gray Green		Solder	150 °C	-50 °C	Unshielded	IP50		0.51 µm	20 µin	0 °
ITT Cannon, LLC PLB3G620J08	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	5 A	Blue Gray	8	Solder	150 °C	-50 °C	Unshielded	IP50	J	0.51 µm	20 µin
ITT Cannon, LLC PLB3G620J14	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	2 A	Blue Gray	14	Solder	150 °C	-50 °C	Unshielded	IP50	J	0.51 µm	20 µin
ITT Cannon, LLC PLB3G120A05	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	7 A	Gray White		Solder	150 °C	-50 °C	Unshielded	IP50	A	0.51 µm	20 µin
ITT Cannon, LLC PLB3G620C10	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	3 A	Blue Gray	10	Solder	150 °C	-50 °C	Unshielded	IP50	C	0.51 µm	20 µin
ITT Cannon, LLC PLB3G520C10	Polysulfone (PSU)	Polyetheretherketone (PEEK)	Receptacle Female Sockets	Bulkhead - Front or Rear Side Nut	Industrial Measurement Medical Testing Equipment	Copper Alloy	Gold	Latch Lock Push-Pull	Panel Mount Right Angle Through Hole	Plastic	3 A	Gray Green	10	Solder	150 °C	-50 °C	Unshielded	IP50	C	0.51 µm	20 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.57

Description

General part information

PLB3G Series

5 Position Circular Connector Receptacle, Female Sockets Solder
