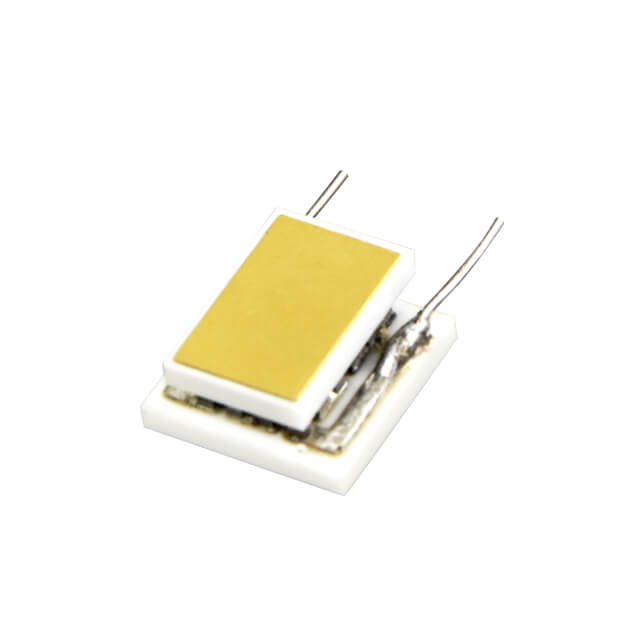

CP1062-268P

Active

CUI Devices

PELTIER, 6.2 X 6.2 X 2.9 MM, 1 A

Search across all available documentation for this part.

Active

CUI Devices

PELTIER, 6.2 X 6.2 X 2.9 MM, 1 A

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Qmax @ Th	Operating Temperature	Height [z]	Features	Voltage - Max [Max]	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Current - Max [Max]
CUI Devices CP1062-268P	1.04 Ohms	0.9 W	150 °C	2.9 mm	Lead Wires Non-Sealed	1.4 V	70 °C	6.2 mm	6.2 mm	1 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	120	$ 24.17

General part information

Peltier Module 0.9W @ 27°C 1 A 150°C

Technical documentation and resources
