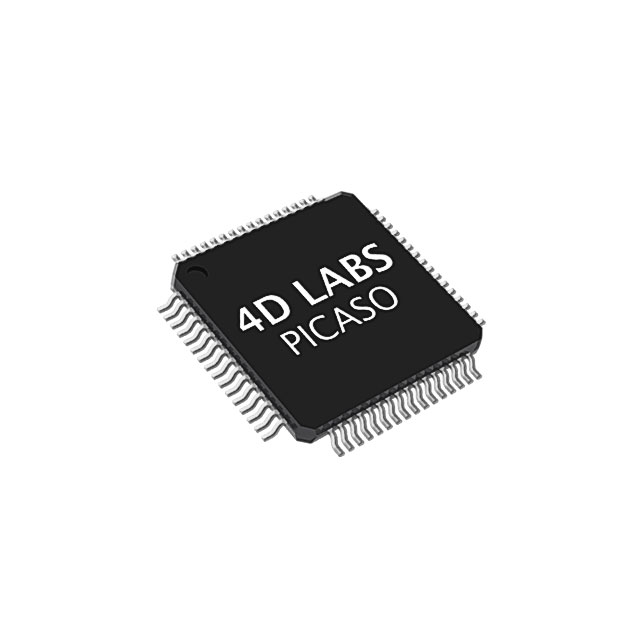

PICASO

Active

4D Systems Pty Ltd

EMBEDDED GRAPHICS CONTROLLER

Search across all available documentation for this part.

Active

4D Systems Pty Ltd

EMBEDDED GRAPHICS CONTROLLER

Technical Specifications

Parameters and characteristics for this part

Specification	PICASO

Applications	Graphics Processor
Core Processor	EVE
Interface	LCD, OLED, TFT, SD/SDHC, SPI, TTL, I2C, UART
Mounting Type	Surface Mount
Number of I/O	13
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Package / Case	64-TQFP
Program Memory Type	14 kB
Program Memory Type	FLASH
RAM Size	14K x 8
Supplier Device Package	64-TQFP (10x10)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Interface	Operating Temperature [Min]	Operating Temperature [Max]	Number of I/O	Applications	Program Memory Type	Program Memory Type	Supplier Device Package	Mounting Type	Core Processor	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	RAM Size	Dot Pitch [x]	Dot Pitch [y]	Touchscreen	Backlight	Viewing Area [z]	Viewing Area [y]	Graphics Color	Display Mode	Display Type	Dot Pixels [x]	Dot Pixels [y]
4D Systems Pty Ltd PICASO	I2C LCD OLED SD/SDHC SPI TFT TTL UART	-40 °C	80 C	13	Graphics Processor	14 kB	FLASH	64-TQFP (10x10)	Surface Mount	EVE	3.6 V	3 V	64-TQFP	14K x 8
4D Systems Pty Ltd PICADILLO-35T	I2C SPI														0.15 mm	0.15 mm	Resistive	LED - White	49 mm	73.4 mm	Blue Green Red	Transmissive	TFT - Color	320 pixels	480
