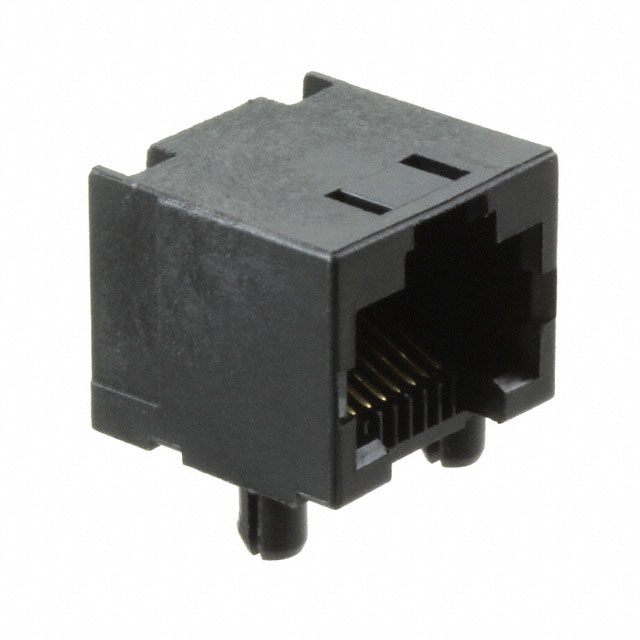

PJ068-8P8C6

Active

On Shore Technology Inc.

8 POS. 8 CONTACT SIDE ENTRY THRU

Search across all available documentation for this part.

Active

On Shore Technology Inc.

8 POS. 8 CONTACT SIDE ENTRY THRU

Technical Specifications

Parameters and characteristics for this part

Specification	PJ068-8P8C6

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.152 Ám
Contact Finish Thickness	6 Áin
Housing Material	Polyamide (PA), Nylon
LED Color	Does Not Contain LED
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

Part	Contact Finish	Mounting Type	Housing Material	Connector Type	Tab Direction	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	LED Color	Number of Ports	Number of Positions/Contacts	Contact Finish Thickness	Contact Finish Thickness	Orientation	Shielding
On Shore Technology Inc. PJ068-8P8C6	Gold	Panel Mount Through Hole	Polyamide (PA) Nylon	Jack	Up	Solder	85 °C	-40 °C	1	Does Not Contain LED	1	8p8c (RJ45 Ethernet)	0.152 Ám	6 Áin	90 °	Shielded EMI Finger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
