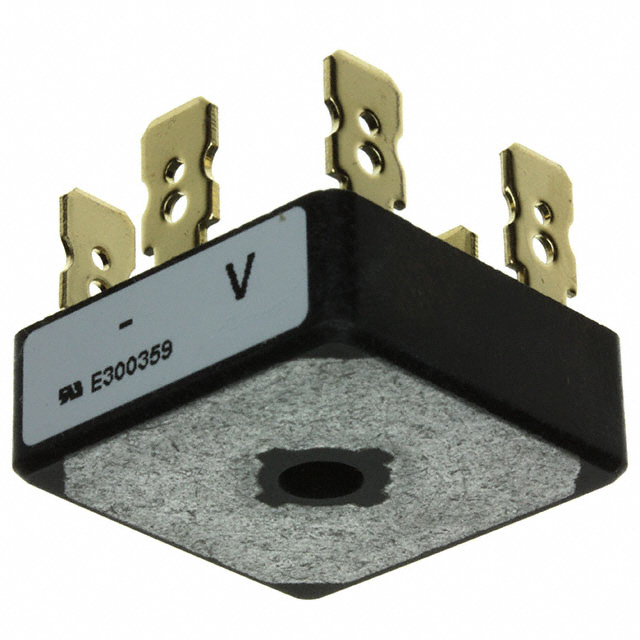

VS-26MT100

Unknown

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 3PHASE 1KV 25A D-63

Search across all available documentation for this part.

Unknown

Vishay General Semiconductor - Diodes Division

BRIDGE RECT 3PHASE 1KV 25A D-63

Technical Specifications

Parameters and characteristics for this part

Specification	VS-26MT100

Current - Average Rectified (Io)	25 A
Current - Reverse Leakage @ Vr	100 µA
Diode Type	Three Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	5-Square, D-63
Supplier Device Package	D-63
Technology	Standard
Voltage - Peak Reverse (Max) [Max]	1000 V

Part	Voltage - Peak Reverse (Max) [Max]	Mounting Type	Current - Reverse Leakage @ Vr	Diode Type	Package / Case	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Current - Average Rectified (Io)
Vishay General Semiconductor - Diodes Division VS-26MT100	1000 V	QC Terminal	100 µA	Three Phase	5-Square D-63	Standard	-55 °C	150 °C	D-63	25 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.70

General part information

Bridge Rectifier Three Phase Standard 1 kV QC Terminal D-63
