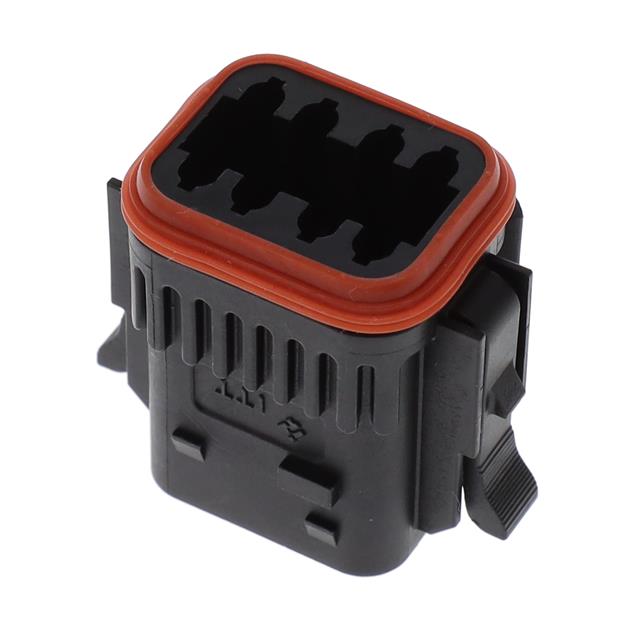

IT06-8SA-026

Active

ITT Cannon, LLC

CONN PLUG HSG 8POS

Search across all available documentation for this part.

Active

ITT Cannon, LLC

CONN PLUG HSG 8POS

Technical Specifications

Parameters and characteristics for this part

Specification	IT06-8SA-026

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	8
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Number of Positions	Contact Termination	Fastening Type	Insulation Material	Contact Type	Color	Mounting Type	Connector Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Features
ITT Cannon, LLC IT06-8SA-026	8	Crimp	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	Black	Free Hanging (In-Line)	Plug	2	-55 °C	125 °C
ITT Cannon, LLC IT06-8SA-020-N	8	Crimp	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	Gray	Free Hanging (In-Line)	Plug	2	-55 °C	125 °C	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-8SA-022	8	Crimp	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	Gray	Free Hanging (In-Line)	Plug	2	-55 °C	125 °C
ITT Cannon, LLC IT06-8SA-026-N	8	Crimp	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	Black	Free Hanging (In-Line)	Plug	2	-55 °C	125 °C
ITT Cannon, LLC IT06-8SA-022-N	8	Crimp	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	Gray	Free Hanging (In-Line)	Plug	2	-55 °C	125 °C
ITT Cannon, LLC IT06-8SA-020	8	Crimp	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	Gray	Free Hanging (In-Line)	Plug	2	-55 °C	125 °C	Cap (Cover) IP67 IP68 IP69K Sealed
ITT Cannon, LLC IT06-8SA-024-N	8	Crimp	Latch Lock	Glass Filled Nylon Polyamide (PA)	Female Socket	Black	Free Hanging (In-Line)	Plug	2	-55 °C	125 °C	Cap (Cover) IP67 IP68 IP69K Sealed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Rectangular Connectors - Housings Plug Black
