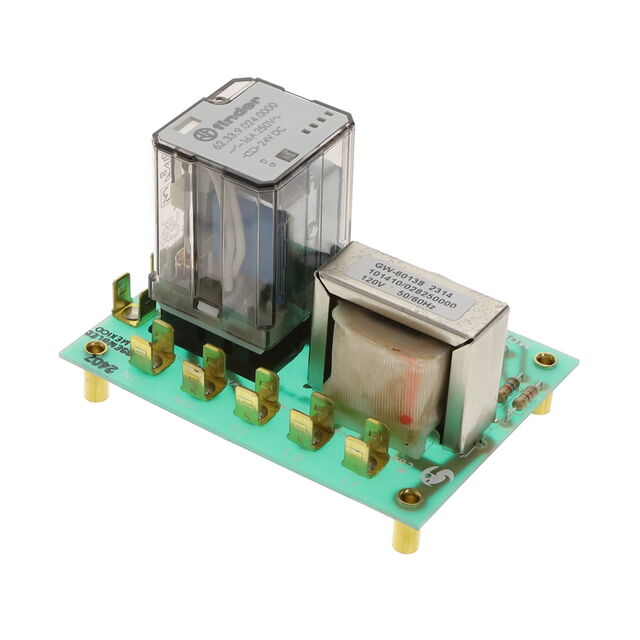

ELC-1-D
ActiveCurtis Industries
CONTROL LIQ LEVEL 120VAC CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ELC-1-D
ActiveCurtis Industries
CONTROL LIQ LEVEL 120VAC CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ELC-1-D |
|---|---|
| Contact Form | DPDT (2 Form C) |
| Contact Rating @ Voltage [x] | 10 A, 120 VAC |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Sensitivity [Max] | 50 kOhm |
| Sensitivity [Min] | 0 Ohm |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | High/Low Level |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 191.12 | |
| 10 | $ 184.75 | |||
| 25 | $ 172.01 | |||
| 50 | $ 169.46 | |||
Description
General part information
ELC Series
Liquid Level Controller High/Low Level DPDT (2 Form C) 120VAC Chassis Mount
