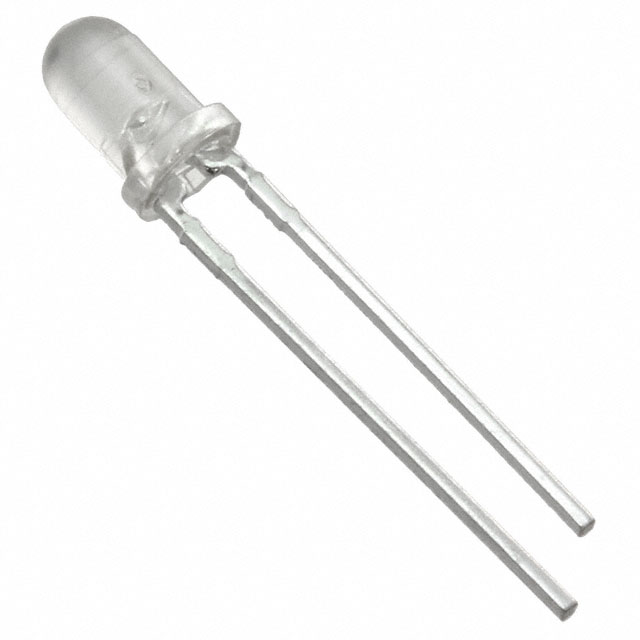

OP266B
ActiveTT Electronics/Optek Technology
EMITTER IR 890NM 50MA T-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OP266B
ActiveTT Electronics/Optek Technology
EMITTER IR 890NM 50MA T-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OP266B |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | T-1 |
| Type | Infrared (IR) |
| Viewing Angle | 18 ° |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength | 890 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.32 | |
| 100 | $ 1.23 | |||
| 250 | $ 1.19 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 1.11 | |||
| 2500 | $ 1.09 | |||
| 5000 | $ 1.06 | |||
Description
General part information
OP266 Series
Infrared (IR) Emitter 890nm 1.8V 50mA 18° T-1
