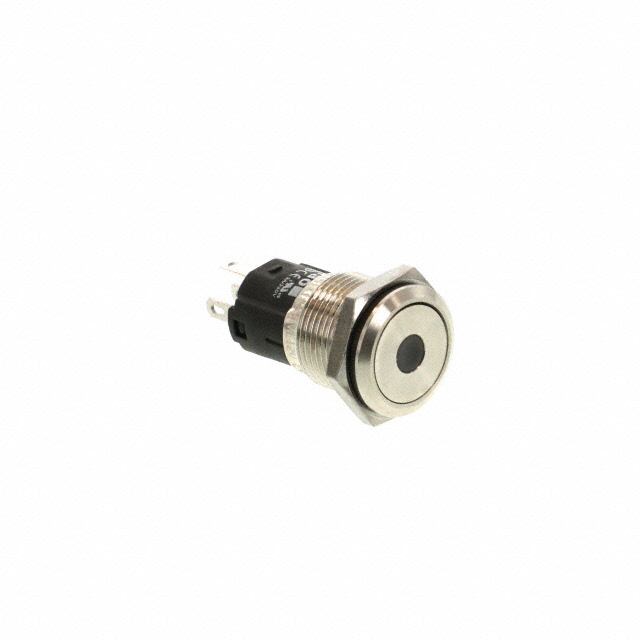

82-4151.1243

Active

EAO

SWITCH PUSHBUTTON SPDT 3A 240V

Deep-Dive with AI

Search across all available documentation for this part.

Documents82 Series Catalog Datasheet

82-4151.1243

Active

EAO

SWITCH PUSHBUTTON SPDT 3A 240V

Deep-Dive with AI

Documents82 Series Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	82-4151.1243

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	50000 Cycles
Features	Stainless Steel
Illumination Type, Color	LED, Yellow
Illumination Voltage (Nominal)	12 VAC/DC
Ingress Protection	IP67, IP65
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	240 V
Voltage Rating - DC	240 V

82-4151 Series

Pushbutton Switches 82-5151.2125.Illuminated pushbutton.maintained.19 mm.stainless steel.flush/flat.ring.blue.110 V.soldering terminal

...

Part	Lamp Color	Termination Style	Current	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Lens Size [diameter]	Ratings	Lens Transparency	Lens Color	Voltage	Panel Cutout Shape	Type	Illumination Voltage (Nominal)	Electrical Life	Mechanical Life	Termination Style	Termination Style	Switch Function	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Voltage Rating - DC	Mounting Type	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Illumination Type, Color	Current Rating (Amps)	Actuator Type	Actuator Marking	Features
EAO 82-6151.0153	White	Solder Lug	7 mA	0.88 in	22.3 mm	IP65 IP67	25 mm	AC/DC	Diffused	White	12 V	Round	LED
EAO 82-5151.1132		Quick Connect Solder				IP65 IP67							Illuminated Standard	6 VAC/DC	50000 Cycles	1000000 Cycles	0.11 in	2.8 mm	On-Mom	19 mm	240 V	240 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver	Green LED	3 A	Button Flush Round
EAO 82-4151.1243		Quick Connect Solder				IP65 IP67							Illuminated Standard	12 VAC/DC	50000 Cycles	1000000 Cycles	0.11 in	2.8 mm	On-Mom	16 mm	240 V	240 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver	LED Yellow	3 A	Button Flush Round	No Marking	Stainless Steel
EAO 82-4153.22AA		Quick Connect Solder				IP65 IP67							Illuminated Standard		50000 Cycles	500000 Cycles	0.11 in	2.8 mm	On-On	16 mm	24 V	24 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver	Green/Red LED	200 mA	Button Flush Round	No Marking
EAO 82-5151.1124.B002		Quick Connect Solder				IP65 IP67							Illuminated Standard	24 VAC/DC	50000 Cycles	1000000 Cycles	0.11 in	2.8 mm	On-Mom	19 mm	240 V	240 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver	Blue LED	3 A	Button Flush Round	Standby Symbol
EAO 82-4151.1000		Quick Connect Solder				IP65 IP67							Standard		50000 Cycles	1000000 Cycles	0.11 in	2.8 mm	On-Mom	16 mm	240 V	240 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver		3 A	Button Flush Round	No Marking	Stainless Steel
EAO 82-6151.1144		Quick Connect Solder				IP65 IP67							Illuminated Standard	24 VAC/DC	50000 Cycles	1000000 Cycles	0.11 in	2.8 mm	On-Mom	22.3 mm	240 V	240 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver	LED Yellow	3 A	Button Flush Round	No Marking	Stainless Steel
EAO 82-4551.2134		Quick Connect Solder				IP65 IP67							Illuminated Standard	24 VAC/DC	50000 Cycles	500000 Cycles	0.11 in	2.8 mm	On-On	16 mm	240 V	240 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver	Green LED	3 A	Button Flush Round	No Marking
EAO 82-4151.0144	Yellow	Solder Lug	7 mA	0.64 in	16.2 mm	IP65 IP67	18 mm	AC/DC		Colorless	24 V	Round	LED
EAO 82-6151.1143.B085		Quick Connect Solder				IP65 IP67							Illuminated Standard	12 VAC/DC	50000 Cycles	1000000 Cycles	0.11 in	2.8 mm	On-Mom	22.3 mm	240 V	240 V	Panel Mount Front	SPDT	70 °C	-30 ░C	Silver	LED Yellow	3 A	Button Flush Round	No Marking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.55
		10	$ 22.29
		100	$ 19.41

Description

General part information

82-4151 Series

Pushbutton Switches 82-5151.2125.Illuminated pushbutton.maintained.19 mm.stainless steel.flush/flat.ring.blue.110 V.soldering terminal

Documents

Technical documentation and resources

82 Series Catalog

Datasheet
