88.12.0.230.0002

Active

Finder Relays, Inc.

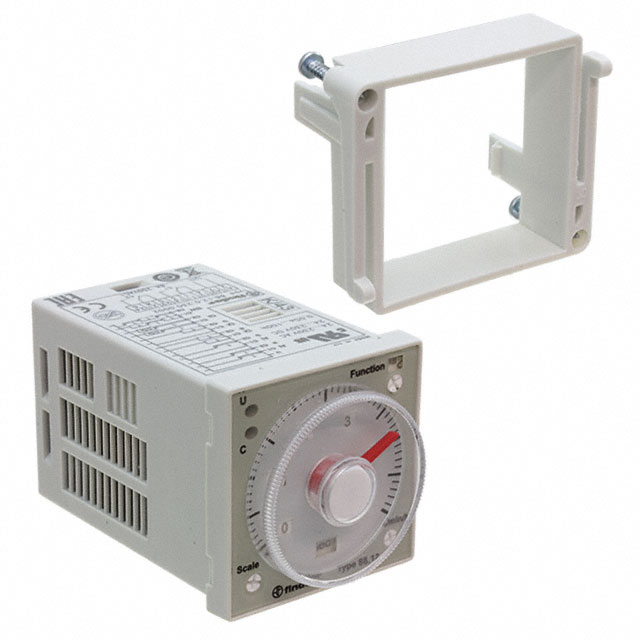

RELAY TIME DELAY 100HR 8A 250V

Search across all available documentation for this part.

Active

Finder Relays, Inc.

RELAY TIME DELAY 100HR 8A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	88.12.0.230.0002

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	100 Hrs
Delay Time [Min]	0.05 Sec
Function	Programmable (Multi-Function)
Mounting Type	Socketable
Relay Type	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)
Timing Adjustment Method	Hand Dial
Timing Initiate Method	Trigger Signal, Input Voltage
Voltage - Supply [Max]	230 VAC
Voltage - Supply [Min]	24 VAC

Part	Timing Adjustment Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Contact Rating @ Voltage	Relay Type	Delay Time [Max]	Delay Time [Min]	Circuit	Termination Style	Mounting Type	Timing Initiate Method	Function
Finder Relays, Inc. 88.12.0.230.0002	Hand Dial	230 VAC	24 VAC	8 A 250 VAC	Mechanical Relay	100 Hrs	0.05 Sec	DPDT (2 Form C)	Plug In 8 Pin (Octal)	Socketable	Input Voltage Trigger Signal	Programmable (Multi-Function)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.05 Sec ~ 100 Hrs Delay 8A @ 250VAC Socketable
