333-038-544-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
333-038-544-812
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 38POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 333-038-544-812 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 38 |
| Number of Positions/Bay/Row [custom] | 19 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Wire Wrap |
| Termination Rows | 2 |
333-038 Series
...
| Part | Number of Positions/Bay/Row [custom] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Gender | Material - Insulation | Termination Rows | Mounting Type | Number of Rows | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Read Out | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Color | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Positions | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 38 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Female | Polyester Thermoplastic | 1 | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Single | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 38 | |||
EDAC Inc. | 19 | Side Mount Opening Unthreaded | Female | Polyester Thermoplastic | 2 | Through Hole | 2 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 38 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 38 | M3 Threaded Insert Top Mount Opening | Female | Polyester Thermoplastic | 1 | Through Hole Right Angle | 1 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Single | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 38 | |||||
EDAC Inc. | 38 | Flush Mount M3 Threaded Insert Top Opening | Female | Polyester Thermoplastic | 1 | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Single | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 38 | |||||
EDAC Inc. | 38 | Flush Mount M3 Threaded Insert Top Opening | Female | Polyester Thermoplastic | 1 | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Single | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 38 | |||||
EDAC Inc. | 38 | 4-40 Threaded Insert Top Mount Opening | Female | Polyester Thermoplastic | 1 | Through Hole | 1 | Copper Alloy | -40 °C | 105 ░C | Solder | Gold | Single | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 38 | |||||
EDAC Inc. | 19 | Side Mount Opening Unthreaded | Female | Polyester Thermoplastic | 2 | Through Hole | 2 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 38 | 3.25 mm | 0.128 in | |||
EDAC Inc. | 19 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | Female | Polyester Thermoplastic | 2 | Board Edge Straddle Mount | 2 | Copper Alloy | -40 °C | 105 ░C | Solder | Gold | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 38 | Card Extender | ||
EDAC Inc. | 19 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Female | Polyester Thermoplastic | 2 | Through Hole | 2 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Dual | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 38 | |||
EDAC Inc. | 38 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | Female | Polyester Thermoplastic | 1 | Through Hole Right Angle | 1 | Copper Alloy | -40 °C | 105 ░C | Wire Wrap | Gold | Single | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 38 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 8.37 | |
Description
General part information
333-038 Series

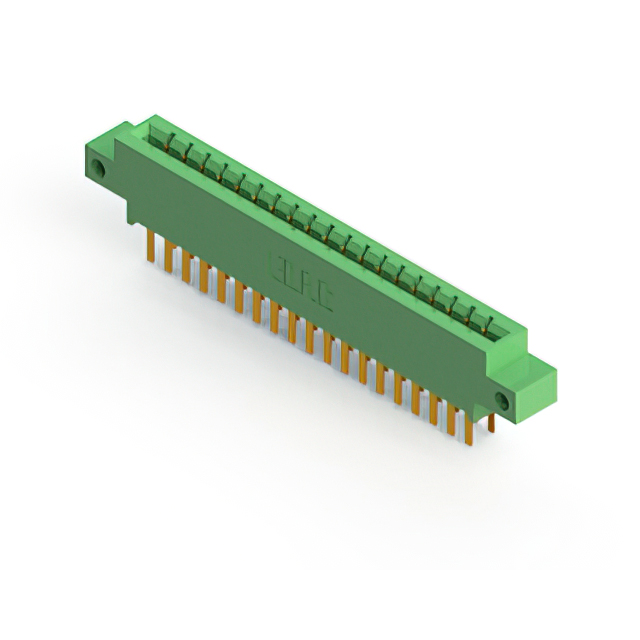

38 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
