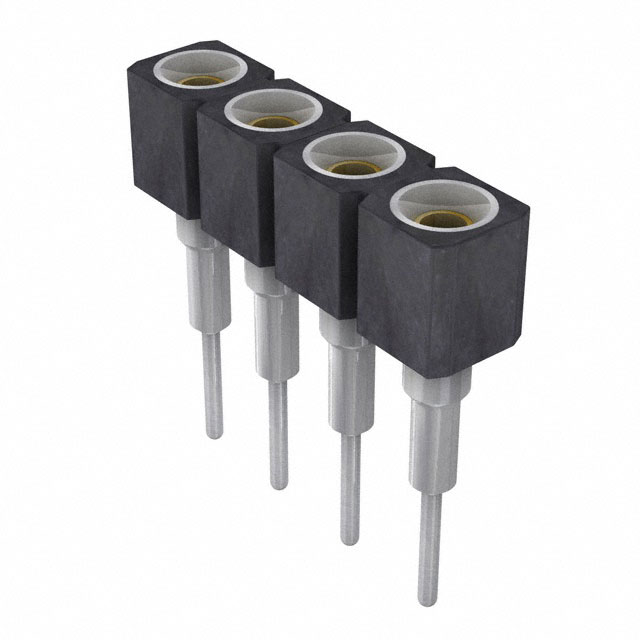

316-87-104-41-018101

Active

PRECI-DIP SA

CONN SOCKET 4POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

316-87-104-41-018101

Active

PRECI-DIP SA

CONN SOCKET 4POS 0.1 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	316-87-104-41-018101

Connector Type	Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	7 mm
Insulation Height [z]	0.276 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

316-87 Series

...

Part	Insulation Height	Insulation Height	Termination	Number of Positions	Contact Length - Post	Contact Length - Post [x]	Contact Finish Thickness - Mating	Mounting Type	Number of Rows	Contact Material	Contact Finish - Post	Fastening Type	Insulation Material	Contact Shape	Current Rating (Amps)	Contact Finish - Mating	Insulation Color	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Insulation Height [z]	Insulation Height [z]
PRECI-DIP SA 316-87-149-41-012101	9 mm	0.354 in	Solder	49	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-149-41-002101	11 mm	0.433 in	Solder	49	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-109-41-007101	10 mm	0.394 "	Solder	9	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-133-41-011101	18 mm	0.709 in	Solder	33	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-162-41-003101	8 mm	0.315 in	Solder	62	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-103-41-002101	11 mm	0.433 in	Solder		3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-127-41-011101	18 mm	0.709 in	Solder	27	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-125-41-006101	6 mm	0.236 in	Solder		3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket
PRECI-DIP SA 316-87-104-41-018101			Solder	4	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket	7 mm	0.276 in
PRECI-DIP SA 316-87-127-41-001101	15 mm	0.591 in	Solder	27	3.2 mm	0.126 in	Flash	Through Hole	1	Beryllium Copper	Tin	Push-Pull	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	3 A	Gold	Black	All	0.1 in	2.54 mm	UL94 V-0	Female Socket	-55 °C	125 °C	Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1860	$ 0.34

Description

General part information

316-87 Series

4 Position Socket Connector 0.100" (2.54mm) Through Hole Gold
