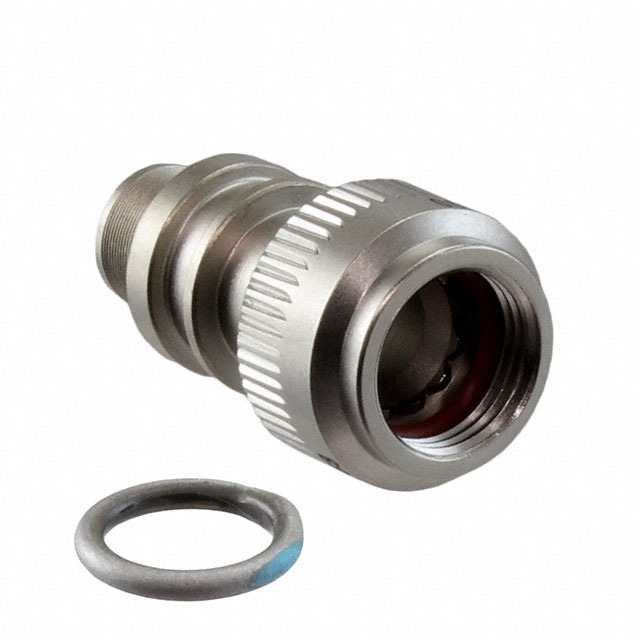

TXR40AC00-0804AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH ADPT SZ9 A SIL M12

Deep-Dive with AI

Search across all available documentation for this part.

TXR40AC00-0804AI

Active

TE Connectivity Aerospace, Defense and Marine

CONN BACKSH ADPT SZ9 A SIL M12

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TXR40AC00-0804AI

Cable Exit	180 °
Color	Silver
Diameter - Outside [diameter]	18 mm
Diameter - Outside [diameter]	0.709 in
Features	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert [custom]	9
Shell Size - Insert [custom]	A
Shielding	Shielded
Thread Size	M12x1
Type	Backshell, Heat Shrink Adapter

TXR40AC00 Series

Part	Shell Size - Insert [custom]	Shell Size - Insert [custom]	Plating	For Use With/Related Products	Type	Includes	Features	Thread Size	Ingress Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Material	Color	Cable Exit	Shielding	Shell Size - Insert	Shell Size - Insert	Includes	Diameter - Outside [diameter]
TE Connectivity Aerospace, Defense and Marine TXR40AC00-0804AI	9	A	Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock	M12x1	Environment Resistant	18 mm	0.709 in	Aluminum Alloy	Silver	180 °	Shielded
TE Connectivity Aerospace, Defense and Marine TXR40AC00-1412AI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter		Tinel Lock		Environment Resistant	1.142 in		Aluminum Alloy	Silver	180 °	Shielded	15	D	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell	29 mm
TE Connectivity Aerospace, Defense and Marine TXR40AC00-1604AI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock	M25x1	Environment Resistant	32.49 mm	1.279 in	Aluminum Alloy	Silver	180 °	Shielded		17 E
TE Connectivity Aerospace, Defense and Marine TXR40AC00-1808AI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock	M28x1	Environment Resistant	35.5 mm	1.398 in	Aluminum Alloy	Silver	180 °	Shielded	19	F
TE Connectivity Aerospace, Defense and Marine TXR40AC00-1007AI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock	M15x1	Environment Resistant	21 mm	0.827 in	Aluminum Alloy	Silver	180 °	Shielded	11	B
TE Connectivity Aerospace, Defense and Marine TXR40AC00-1404AI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock		Environment Resistant	1.142 in		Aluminum Alloy	Silver	180 °	Shielded	15	D		29 mm
TE Connectivity Aerospace, Defense and Marine TXR40AC00-2016AI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock	M31x1	Environment Resistant	37 mm	1.457 "	Aluminum Alloy	Silver	180 °	Shielded	21	G
TE Connectivity Aerospace, Defense and Marine TXR40AC00-1605AI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock	M25x1	Environment Resistant	32.49 mm	1.279 in	Aluminum Alloy	Silver	180 °	Shielded		17 E
TE Connectivity Aerospace, Defense and Marine TXR40AC00-0805AI	9	A	Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter		Tinel Lock	M12x1	Environment Resistant	18 mm	0.709 in	Aluminum Alloy	Silver	180 °	Shielded			1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell
TE Connectivity Aerospace, Defense and Marine TXR40AC00-1608BI			Electroless Nickel	MIL-DTL-38999 Series III IV	Backshell Heat Shrink Adapter	1 pcs 1 pcs 1 pcs 1 pcs	Tinel Lock	M25x1	Environment Resistant	32.49 mm	1.279 in	Aluminum Alloy	Silver	180 °	Shielded		17 E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 77.04

Description

General part information

TXR40AC00 Series

Silver Connector Backshell, Heat Shrink Adapter M12x1 9, A
