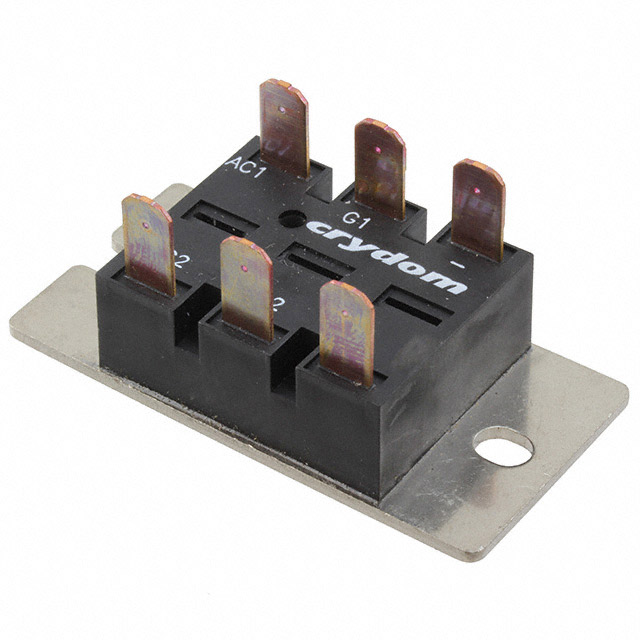

M252513F
Sensata-Crydom
MODULE POWER 25A 320VAC SCR CC
Deep-Dive with AI
Search across all available documentation for this part.
M252513F
Sensata-Crydom
MODULE POWER 25A 320VAC SCR CC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M252513F |
|---|---|
| Current - Gate Trigger (Igt) (Max) [Max] | 50 mA |
| Current - Hold (Ih) (Max) [Max] | 75 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 300 A |
| Mounting Type | Chassis Mount |
| Number of SCRs, Diodes [custom] | 2 |
| Number of SCRs, Diodes [custom] | 2 |
| Package / Case | Module |
| Structure | Bridge, Single Phase - SCRs/Diodes (Layout 1) |
| Voltage - Gate Trigger (Vgt) (Max) | 2.5 V |
| Voltage - Off State | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.88 | |
| 10 | $ 76.08 | |||
| 50 | $ 72.62 | |||
| 100 | $ 70.49 | |||
Description
General part information
M252513 Series
SCR Module 800 V Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module
