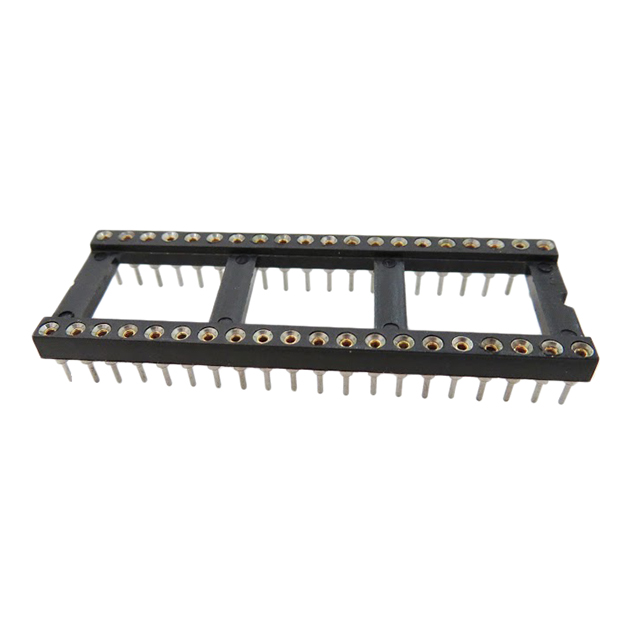

ICM-640-1-GT-HT
ActiveAdam Tech
MACHINE PIN SOCKET, IC, DIP, 40P
Deep-Dive with AI
Search across all available documentation for this part.
ICM-640-1-GT-HT
ActiveAdam Tech
MACHINE PIN SOCKET, IC, DIP, 40P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICM-640-1-GT-HT |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | Flash |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) | 40 |
| Number of Positions or Pins (Grid) [custom] | 20 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length | 0.11 in |
| Termination Post Length | 2.78 mm |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.10 | |
| 10 | $ 1.60 | |||
| 25 | $ 1.44 | |||
| 50 | $ 1.33 | |||
| 100 | $ 1.23 | |||
| 250 | $ 1.12 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.97 | |||
| 2500 | $ 0.88 | |||
Description
General part information
ICM-6 Series
40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
