PAT-01-DC-B-20-S-9

Active

FiberSource, Inc

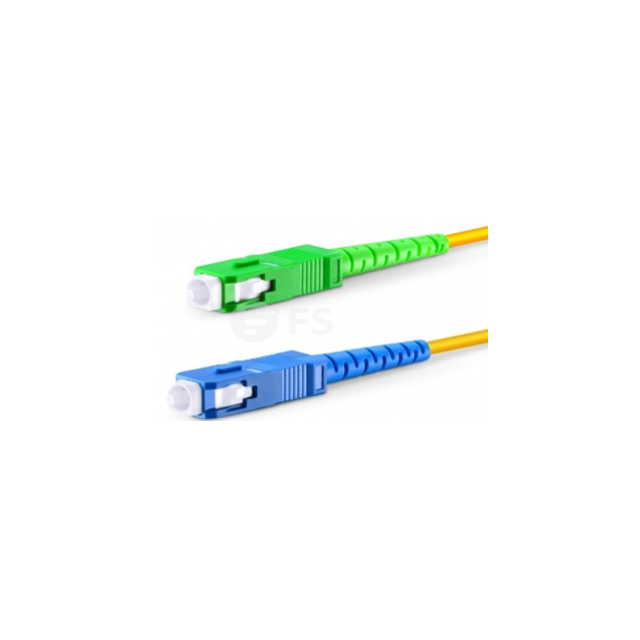

SCA-SCU SM 2MM YELLOW SIMPLEX 1M

Deep-Dive with AI

Search across all available documentation for this part.

PAT-01-DC-B-20-S-9

Active

FiberSource, Inc

SCA-SCU SM 2MM YELLOW SIMPLEX 1M

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PAT-01-DC-B-20-S-9

1st Connector	SC/APC
2nd Connector	SC/UPC
Cable Diameter [diameter]	2 mm
Cable Diameter [diameter]	0.08 in
Cable Type	Bend Insensitive Fiber (BIF)
Color - Cable	Yellow
Color - Connectors	Blue, Green
Features	Low Smoke
Fiber Type	9/125
Insertion Loss	0.2 dB
Length - Overall [x]	1 m
Length - Overall [x]	3.3 ft
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Ratings	LSZH
Return Loss	65 dB, 55 dB
Type	Singlemode, Simplex

PAT-01 Series

Part	2nd Connector	Length - Overall [x]	Length - Overall [x]	Features	Return Loss	Type	Color - Cable	Color - Connectors	Fiber Type	Cable Type	Ratings	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	1st Connector	Insertion Loss
FiberSource, Inc PAT-01-DC-B-20-S-9	SC/UPC	1 m	3.3 ft	Low Smoke	55 dB 65 dB	Simplex Singlemode	Yellow	Blue Green	9/125	Bend Insensitive Fiber (BIF)	LSZH	2 mm	0.08 in	85 °C	-40 °C	SC/APC	0.2 dB
FiberSource, Inc PAT-01-JH-B-20-D-9	LC/UPC	1 m	3.3 ft		65 dB	Duplex Singlemode	Yellow	Blue				2 mm	0.08 in	85 °C	-40 °C	LC/APC	0.3 dB
FiberSource, Inc PAT-01-HC-B-20-D-9	SC Duplex	1 m	3.3 ft		55 dB	Duplex Singlemode	Yellow	Blue				2 mm	0.08 in	85 °C	-40 °C	LC Duplex	0.3 dB
FiberSource, Inc PAT-01-DD-B-20-D-9	SC Duplex	1 m	3.3 ft		65 dB	Duplex Singlemode	Yellow	Blue				2 mm	0.08 in	85 °C	-40 °C	SC Duplex	0.3 dB
FiberSource, Inc PAT-01-HH-B-20-D-9	LC Duplex	1 m	3.3 ft		55 dB	Duplex Singlemode	Yellow	Blue				2 mm	0.08 in	85 °C	-40 °C	LC Duplex	0.3 dB
FiberSource, Inc PAT-01-NN-F-20-D-A	LC/PPC	1 m	3.3 ft			Duplex Multimode OM3		Blue	50/125			2 mm	0.08 in	85 °C	-40 °C
FiberSource, Inc PAT-01-HD-B-20-D-9	SC/APC	1 m	3.3 ft		65 dB	Duplex Singlemode	Yellow	Blue				2 mm	0.08 in	85 °C	-40 °C	LC/UPC	0.3 dB
FiberSource, Inc PAT-01-NL-F-20-D-A	SC/PPC	1 m	3.3 ft			Duplex Multimode OM3		Blue	50/125			2 mm	0.08 in	85 °C	-40 °C
FiberSource, Inc PAT-01-JD-B-20-D-9	SC Duplex	1 m	3.3 ft		65 dB	Duplex Singlemode	Yellow	Blue				2 mm	0.08 in	85 °C	-40 °C	LC Duplex	0.3 dB
FiberSource, Inc PAT-01-DC-B-20-D-9	SC Duplex	1 m	3.3 ft		65 dB	Duplex Singlemode	Yellow	Blue				2 mm	0.08 in	85 °C	-40 °C	SC Duplex	0.3 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	10	$ 5.54
		30	$ 5.38
		50	$ 5.22
		80	$ 5.07
		100	$ 4.92
		250	$ 4.78
		500	$ 4.64
		1000	$ 4.51

Description

General part information

PAT-01 Series

Cable Fiber Optic SC/APC To SC/UPC 9/125 3.3' (1.0m)

Documents

Technical documentation and resources

No documents available
