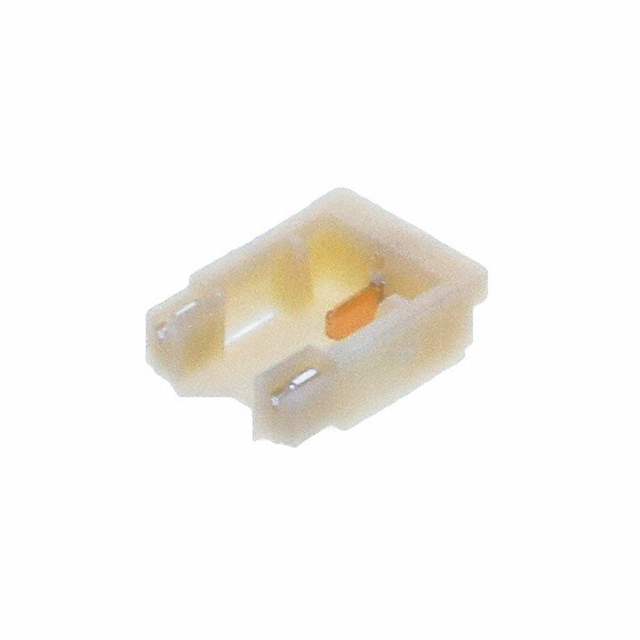

BM01B-ACHSS-A-GAN-ETF
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 1POS 1.2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BM01B-ACHSS-A-GAN-ETF
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 1POS 1.2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BM01B-ACHSS-A-GAN-ETF |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Current Rating (Amps) | 2 A |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height [z] | 0.055 in |
| Insulation Height [z] | 1.4 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 1 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 3 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.61 | |
| 10 | $ 0.54 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.32 | |||
| Digi-Reel® | 1 | $ 0.61 | ||
| 10 | $ 0.54 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.32 | |||
| Tape & Reel (TR) | 4500 | $ 0.29 | ||
| 9000 | $ 0.26 | |||
| 13500 | $ 0.26 | |||
| 31500 | $ 0.25 | |||
Description
General part information
BM01B-AC Series
Connector Header Surface Mount, Right Angle 1 position
