Q-0403S0003072i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-PLUG 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0403S0003072i

Active

Amphenol Custom Cable

CBL ASSY BNC-SMB JACK-PLUG 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0403S0003072i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMB Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to SMB

Q-0403S0 Series

Part	2nd Contact Gender	Length	Length	Length	1st Connector Mounting Feature	Features	Overall Impedance	2nd Connector	Style	Frequency - Max [Max]	2nd Connector Mounting Type	1st Connector	1st Connector Mounting Type	Cable Type	Color	1st Contact Gender
Amphenol Custom Cable Q-0403S0003048i	Male	1200 mm	4 ft	48 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-174	Black	Female
Amphenol Custom Cable Q-0403S0003072i	Male	1.8 m	6 ft	72 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-174	Black	Female
Amphenol Custom Cable Q-0403S0005084i	Male	2.1 m	7 ft	84 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-316	Copper	Female
Amphenol Custom Cable Q-0403S0003036i	Male	91.44 cm		36 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-174	Black	Female
Amphenol Custom Cable Q-0403S0005024i	Male	609.6 mm		24 "	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-316	Copper	Female
Amphenol Custom Cable Q-0403S0003002M	Male	2 m	6.6 ft	78.7 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-174	Black	Female
Amphenol Custom Cable Q-0403S00050.5M	Male	50 cm		19.69 "	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-316	Copper	Female
Amphenol Custom Cable Q-0403S0005006i	Male	152.4 mm		6 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-316	Copper	Female
Amphenol Custom Cable Q-0403S0005002M	Male	2 m	6.6 ft	78.7 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-316	Copper	Female
Amphenol Custom Cable Q-0403S00032.5M	Male	2.5 m	8.2 '	98.4 in	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMB Plug Right Angle	BNC to SMB	4 GHz	Free Hanging (In-Line)	BNC Jack	Panel Mount	RG-174	Black	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 78.44
		25	$ 76.91
		50	$ 75.37
		100	$ 73.83
		250	$ 72.30

Description

General part information

Q-0403S0 Series

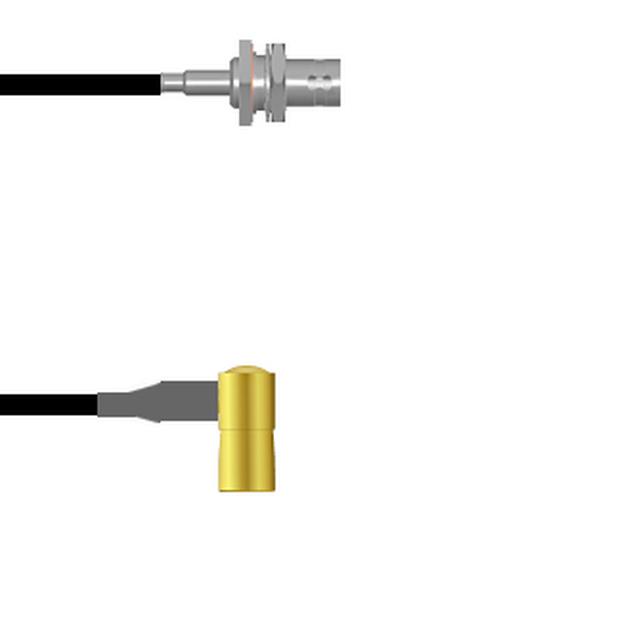

Cable Assembly Coaxial BNC to SMB RG-174 72.0" (1.8m) 6.0'
