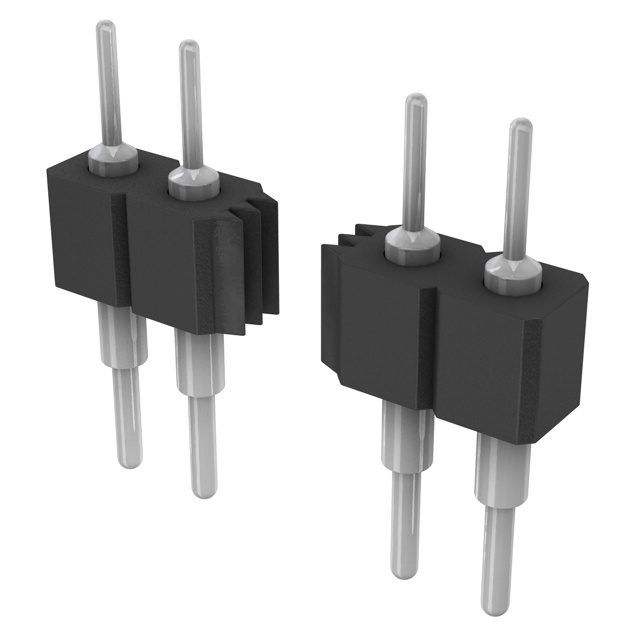

351-80-113-00-005101

Active

PRECI-DIP SA

CONN HEADER VERT 13POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

351-80-113-00-005101

Active

PRECI-DIP SA

CONN HEADER VERT 13POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	351-80-113-00-005101

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	3 mm
Contact Length - Mating	0.118 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	2.95 mm
Insulation Height	0.116 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.846 in
Overall Contact Length	21.5 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

351-80 Series

...

Part	Material Flammability Rating	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Shrouding	Insulation Material	Contact Length - Post	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Voltage Rating	Contact Material	Termination	Number of Positions	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Insulation Color	Number of Rows	Contact Shape	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating
PRECI-DIP SA 351-80-162-00-003101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	12.4 mm	0.488 in	150 VDC	Brass	Solder	62	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-148-00-004101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	14.6 mm	0.575 in	150 VDC	Brass	Solder	48	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-150-00-005101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	21.5 mm	0.846 in	150 VDC	Brass	Solder	50	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-113-00-005101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	21.5 mm	0.846 in	150 VDC	Brass	Solder	13	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-163-00-003101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	12.4 mm	0.488 in	150 VDC	Brass	Solder	63	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-140-00-005101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	21.5 mm	0.846 in	150 VDC	Brass	Solder	40	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-107-00-004101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	14.6 mm	0.575 in	150 VDC	Brass	Solder	7	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-130-00-003101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	12.4 mm	0.488 in	150 VDC	Brass	Solder	30	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-123-00-016101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	27.4 mm	1.079 in	150 VDC	Brass	Solder	23	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm
PRECI-DIP SA 351-80-153-00-004101	UL94 V-0	Push-Pull	Header	-55 °C	125 °C	Through Hole	Tin	2.95 mm	0.116 in	Unshrouded	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	3.2 mm	0.126 in	14.6 mm	0.575 in	150 VDC	Brass	Solder	53	3 mm	0.118 in	3 A	Black	1	Circular	Male Pin	All	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	330	$ 2.12

Description

General part information

351-80 Series

Connector Header Through Hole 13 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
