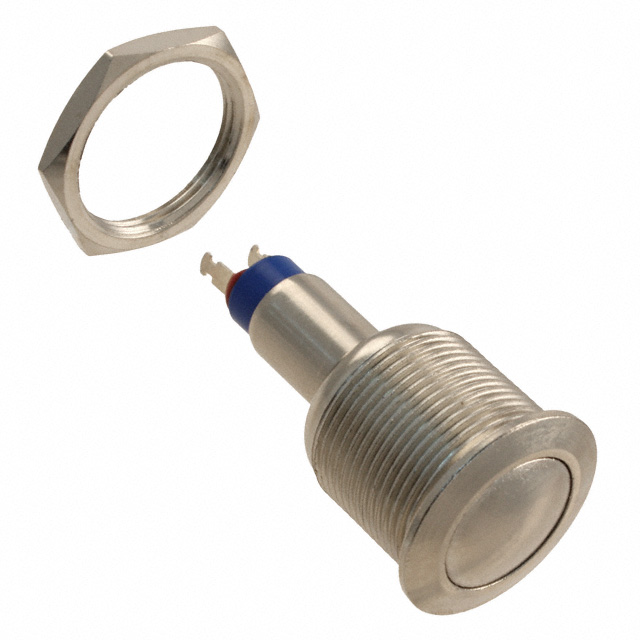

AV19402ZQE

Obsolete

APEM

SWITCH PUSH SPST-NO 3A 120V

Search across all available documentation for this part.

Obsolete

APEM

SWITCH PUSH SPST-NO 3A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	AV19402ZQE

Actuator Marking	No Marking
Actuator Type	Domed, Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	3 A
Electrical Life	10000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - AC	120 V

Part	Termination Style	Current Rating (Amps)	Switch Function	Type	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color - Actuator/Cap	Circuit	Actuator Type	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Marking	Ingress Protection	Features
APEM AV19402ZQE	Solder Lug	3 A	Off-Mom	Anti-Vandal	10000 Cycles	-30 ░C	85 °C	Panel Mount Front	Silver	SPST-NO	Button Domed Round	120 V	19.2 mm	No Marking	IP54 - Dust Protected Water Resistant
APEM AV19402ZQEKUL	Solder Lug	1 A	Off-Mom	Anti-Vandal	10000 Cycles	-30 ░C	85 °C	Panel Mount Front	Silver	SPST-NO	Button Domed Round	125 V	19.2 mm	No Marking	IP65 - Dust Tight Water Resistant	Sealed - Fully

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front

Technical documentation and resources

No documents available
