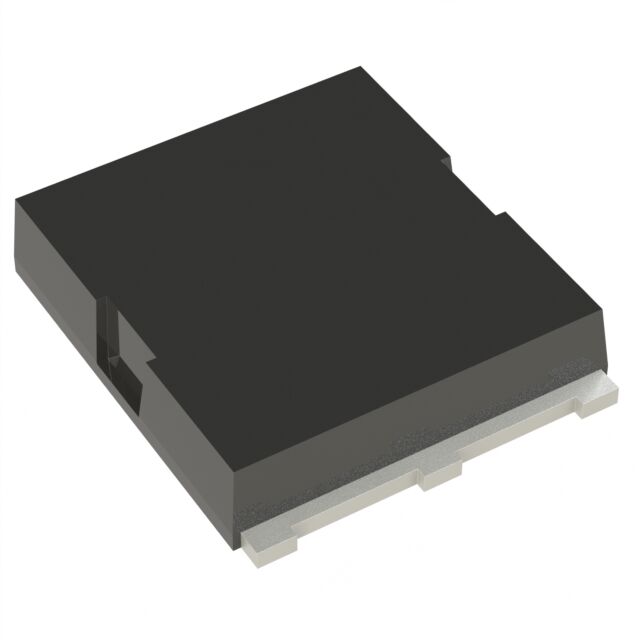

XP8NA1R2TL
ActiveYAGEO XSEMI
MOSFET N-CH 80V 300A TOLL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XP8NA1R2TL
ActiveYAGEO XSEMI
MOSFET N-CH 80V 300A TOLL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XP8NA1R2TL |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 300 A |
| Drain to Source Voltage (Vdss) | 80 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V |
| FET Type | N-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 424 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 25120 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-PowerSFN |
| Power Dissipation (Max) | 333 W, 3.75 W |
| Rds On (Max) @ Id, Vgs | 1.2 mOhm |
| Supplier Device Package | Toll |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.50 | |
| 10 | $ 3.79 | |||
| 100 | $ 2.81 | |||
| Digi-Reel® | 1 | $ 5.50 | ||
| 10 | $ 3.79 | |||
| 100 | $ 2.81 | |||
| Tape & Reel (TR) | 2000 | $ 2.29 | ||
Description
General part information
XP8NA1R2TL
N-Channel 80 V 300A (Tc) 3.75W (Ta), 333W (Tc) Surface Mount TOLL
