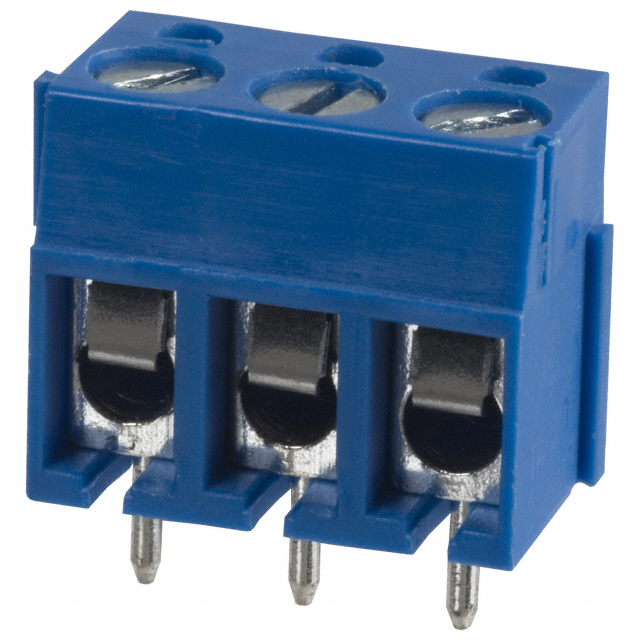

OSTTA030161
ActiveOn Shore Technology Inc.
TERM BLK 3POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTTA030161
ActiveOn Shore Technology Inc.
TERM BLK 3POS SIDE ENTRY 5MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTTA030161 |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Blue |
| Current | 16 A |
| Features | Interlocking (Side) |
| Housing Material | Thermoplastic |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 3 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 0.3 Nm |
| Torque - Screw | 2.6 Lb-In |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.19 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.63 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.47 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.40 | |||
| 5000 | $ 0.32 | |||
Description
General part information
OSTTA03 Series
3 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
