Q-31025000H1.5M

Active

Amphenol Custom Cable

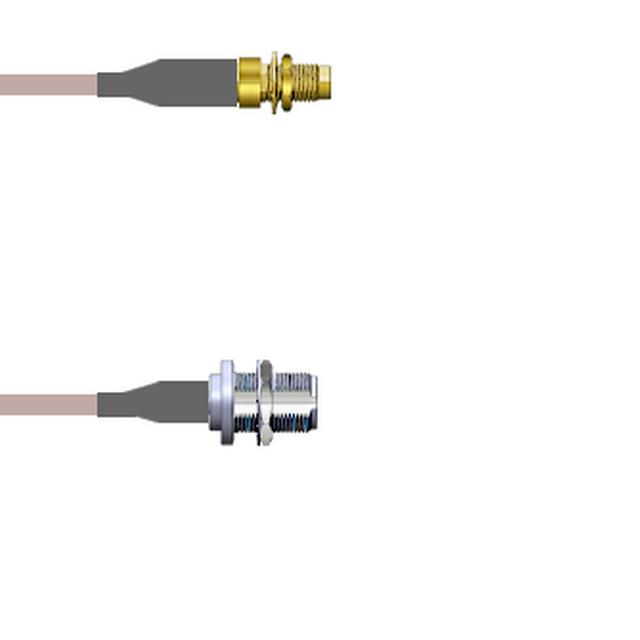

CBL ASSY SMA-NTYPE JCK-JCK 4.9'

Search across all available documentation for this part.

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JCK-JCK 4.9'

Technical Specifications

Parameters and characteristics for this part

Specification	Q-31025000H1.5M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-142
Color	Copper
Connector Impedance	50 Ohms
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	59.1 in
Length	4.9 ft
Length	1.5 m
Overall Impedance	50 Ohms
Style	SMA to N-Type

Part	Connector Impedance	2nd Connector Mounting Feature	2nd Contact Gender	Overall Impedance	Length	Length	Length	1st Connector Mounting Type	Features	Color	1st Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Feature	2nd Connector	Cable Impedance	Style	1st Connector	Frequency - Max [Max]	Cable Type
Amphenol Custom Cable Q-31025000H1.5M	50 Ohms	Bulkhead - Front Side Nut	Female	50 Ohms	59.1 in	4.9 ft	1.5 m	Panel Mount	Shielded	Copper	Female	Panel Mount	Bulkhead - Front Side Nut	N-Type Jack	50 Ohms	SMA to N-Type	SMA Jack	11 GHz	RG-142
Amphenol Custom Cable Q-31025000H003M	50 Ohms	Bulkhead - Front Side Nut	Female	50 Ohms	118.1 in	9.8 '	3 m	Panel Mount	Shielded	Copper	Female	Panel Mount	Bulkhead - Front Side Nut	N-Type Jack	50 Ohms	SMA to N-Type	SMA Jack	11 GHz	RG-142

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-142 59.1" (1.5m) 4.9'

Technical documentation and resources

No documents available
