OD6020-12HHSS

Active

Orion Fans

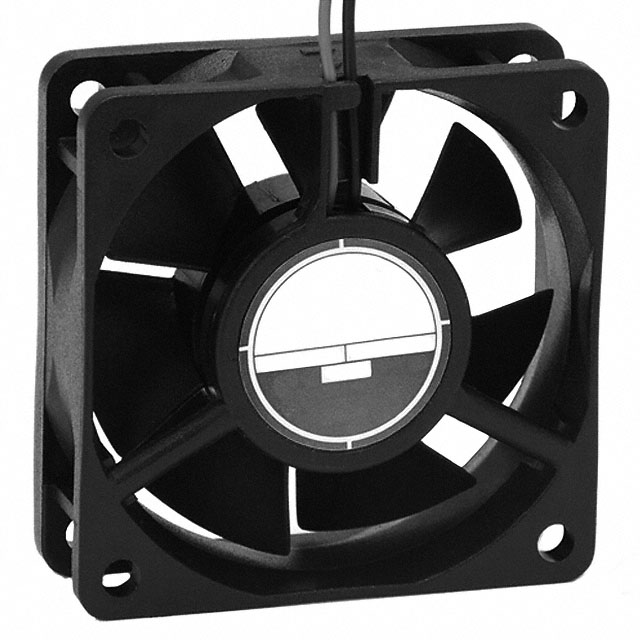

FAN AXIAL 60X20MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

OD6020-12HHSS

Active

Orion Fans

FAN AXIAL 60X20MM 12VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OD6020-12HHSS

Approval Agency	cURus, TUV
Bearing Type	Sealed Sleeve
Fan Type	Tubeaxial
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Width [y]	20 mm

OD6020 Series

Part	Size / Dimension [x]	Size / Dimension [y]	Termination	Width [y]	Approval Agency	Fan Type	Material - Blade	Material - Frame	Bearing Type	Features	Voltage - Rated	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Air Flow	Air Flow	Operating Temperature [Max]
Orion Fans OD6020-12HHS01A	60 mm	60 mm	3 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sleeve	Speed Sensor (Tach)	12 VDC
Orion Fans OD6020-12HHSS	60 mm	60 mm	2 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve		12 VDC
Orion Fans OD6020-12LSS	60 mm	60 mm	2 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve		12 VDC
Orion Fans OD6020-05HSS01A	60 mm	60 mm	3 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve	Speed Sensor (Tach)	5 V
Orion Fans OD6020-05MB01A	60 mm	60 mm	3 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	Speed Sensor (Tach)	5 V
Orion Fans OD6020-12HHSS02A	60 mm	60 mm	3 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sealed Sleeve	Locked Rotor Sensor	12 VDC
Orion Fans OD6020-12MB	60 mm	60 mm	2 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball		12 VDC	0.15 in H2O	37.4 Pa	-20 C	-20 °C	75 ░C	75 °C	17.3 CFM	0.484 mł/min
Orion Fans OD6020-12MB02A	60 mm	60 mm	3 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	Locked Rotor Sensor	12 VDC			-20 C	-20 °C	75 ░C	75 °C
Orion Fans OD6020-12HS02A	60 mm	60 mm	3 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sleeve	Locked Rotor Sensor	12 VDC			-10 °C	-10 °C	50 °C				50 °C
Orion Fans OD6020-24LS	60 mm	60 mm	2 Wire Leads	20 mm	cURus TUV	Tubeaxial	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Sleeve		24 VDC			-10 °C	-10 °C	50 °C				50 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 4.37

Description

General part information

OD6020 Series

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Sealed Sleeve 2 Wire Leads

Documents

Technical documentation and resources

No documents available
